ABSTRACT

Field experiments were conducted to investigate the effects of different irrigation sources (canal, tube-well and sewage) on growth, yield and heavy metal uptake of two summer vegetables i.e. tomato and okra. Growth attributes (plant height, number of leaves, relative leaf chlorophyll content and leaf area) and yield components (number of fruits / pods per plant and fruit size) of okra and tomato were significantly increased with sewage water application. Lesser growth and yield of the studied vegetables was recorded with tube-well water. Use of sewage water improved total yields and fresh and dry plant biomass production of both the vegetables. Significantly higher and lower lead (Pb), copper (Cu), cadmium (Cd), nickel (Ni), chromium (Cr) and iron (Fe) contents were recorded in edible parts of the sewage and tube-well water irrigated vegetables, respectively. Edible parts (tomato fruits and okra pods) of the sewage water irrigated vegetables exhibited heavy metals contents above the maximum permissible limits. Leaf and root samples of the sewage water irrigated tomato and okra also contained significantly greater metals contents as compared to those irrigated with canal and tube-well water. It is concluded that vegetables irrigated with sewage water produced greater yields but these were found contaminated with heavy metals.

INTRODUCTION

Freshwater is an inimitable natural source with fascinating qualities. Worldwide availability of clean water is deficient as its demand has increased three folds since 1950s mainly in countries of African, Middle Eastern and South Asian regions (Gleick, 2003). There are several contributing factors leading to water shortage in Pakistan including poor distribution systems of irrigation, salty ground water, rapid population growth and frequent drought conditions. This situation has led to the application of untreated city waste water for irrigating agricultural lands which has now become a common and prevalent practice in Pakistan especially in peri-urban areas (Khalil and Kakar, 2011) and in many other developing countries of the world (Sharma et al., 2007; Nagajyothi et al., 2009; Nath et al., 2009).

Waste water is a possible source of organic and inorganic elements needed for plant growth (Ramirez-Fuentes etal, 2002; Khan et al, 2013; Mosleh and Almagrabi, 2013). Farmers exploit waste water for irrigation in farming areas located in the vicinity of cities or around the industrial zones, considering this type of water as valuable and inexpensive source of nutrients and an appropriate alternative of fertilizers (Qadir et al., 2008; Murtaza et al., 2010). Waste water holds vital nutrients for plant growth such as N, P and K, and micronutrients including Fe, Mn, Zn and Cu in addition to a substantial quantity of organic matter that contributes to enhance crop productivity (Rai et al., 2011; Ullah et al., 2011; Gosh et al., 2012). The increased growth and yield of corn raised by application of sewage water was ascribed to the presence of macro and micronutrients in waste water (Harati, 2003). Similar results were reported by Segura et al. (2002) suggesting significant increase in the yield of tomato and melon irrigated with waste water grown in greenhouse. Chalkoo et al. (2003) noticed that application of waste water along with phosphorus fertilization significantly increased growth with improved physiological, biochemical and yield attributes of chilli.

Waste water irrigation is generally considered as a main cause of buildup of heavy metals in the soils (Mapanda et al., 2005; Sharma et al., 2007; Ullah et al., 2011; Mosleh and Almagrabi, 2013). Excessive accretion of heavy metals in farming soils irrigated with waste water, not only cause soil contamination, but also contribute to elevate the levels of heavy metal accumulation in plants and thus jeopardize the food value and safety of the crops (Muchuweti et al., 2006). According to WHO (1996), recommended safer levels of various heavy metals for intake of human are Pb (2 mg/kg), Ni (10 mg/kg), Cu (10 mg/kg), Fe (150 mg/kg), Cd (0.02 mg/kg) and Cr (1.3 mg/kg). Intake of heavy metals through contaminated vegetables can exert a substantial health threat to humans, predominantly in levels exceeding the body needs (Banerjee et al., 2011). These metals, being highly toxic and non-biodegradable, damage human health when ingested even at parts per billion (ppb) level. These are gradually released into the body and can cause several diseases (Singh et al., 2010). The harmful impacts of heavy metals include incurable, neurotoxic, mutagenic, carcinogenic and teratogenic consequences (Sharma et al., 2008; Patra et al., 2010). The elevated heavy metals contents have also been reported to negatively influence blood acidity, and cause retardation, kidney damage, different types of cancer and even death among humans. This situation might become shocking for vegetarians as their main component of the food include fresh vegetables.

Food safety is one of the most pressing challenges. Evidence is available to suggests that majority of Pakistani foods are drastically implicated with contaminants like heavy metals; hence pose a dreadful threat to the human health and well-being (Akhtar, 2015). There is an increasing demand for food safety measures, which has stimulated researchers to evaluate food stuffs contaminated with heavy metals, which may cause health risks upon their consumption (D’Mello, 2003). In view of these facts, this study was envisaged to evaluate the growth, yield and accumulation of heavy metals in two summer vegetables (tomato and okra) grown in peri-urban areas of Multan, Pakistan irrigated with different sources of water (tube-well, canal and sewage water).

MATERIALS AND METHODS

The research trials were conducted to evaluate the growth, yield and accumulation of heavy metal contents in two summer vegetables (tomato and okra) grown in peri-urban area of Multan, Pakistan. Field trials were conducted on the selected sites during summer season of two consecutive years (2011 and 2012). There were three treatments (different sources of irrigation) viz. canal, tube-well and sewage water. The experiments for each vegetable were conducted independently in randomized complete block design (RCBD) having factorial arrangements with three replications.

Cultivation of Vegetables

Tomato (Lycopersicon esculentum Mill.)

Six weeks old seedlings of tomato cv. Roma were obtained from local Market and transplanted on 10^th February 2011 (1^st year crop) and 10^th February 2012 (2^nd year crop). The seedlings were transplanted on both sides of 1 m wide beds with plant to plant spacing of 60 cm. The size of each experimental plot was 11.70 m². The plot was irrigated immediately after transplanting and succeeding irrigations were applied according to the crop requirements. Total three hoeing were carried out during entire period of cultivation to eradicate the weeds. The crop was fertilized with N:P:K (100:80:40 kg/ha) by using urea, diammonium phosphate (DAP) and sulphate of potash (SOP).

Okra (Abelmoschus esculentus (L.) Moench)

Seeds of okra cv. Sabz pari were sown on 5^th March 2011 (1^st year crop) and 5^th March 2012 (2^nd year crop). The seeds were sown on both sides of ridges prepared 60 cm apart, keeping plant to plant distance 20 cm. The size of individual experimental unit was 3.76 m². Okra was irrigated instantly after sowing and the rest of the irrigations were applied according to requirements of the crop. To control weeds, three hoeing were carried out during the entire crop growth period. The plants were fertilized with N:P: K @ 120:100:40 kg/ ha by applying urea, DAP and SOP.

Data Collection

Data on various growth parameters were collected at vegetative phase. Data on yield and its related parameters were taken at the times of harvestings. Samples of fruits, pods, leaves and roots of tomato and okra were collected after harvesting for analysis of heavy metals (Pb, Ni, Cu, Fe, Cd and Cr) in different parts of the selected vegetables. The analysis for heavy metals in samples collected during the course of experiments was performed in the Laboratories of Department of Horticulture and Department of Food Science and Technology, Bahauddin Zakariya University, Multan.

Determination of Heavy Metals

Pre-Treatment

The dust particles were removed from the collected vegetable samples by washing them with distilled water and then air-dried in shade for one hour. The vegetable samples were sliced into pieces and placed in an electric oven (Memmert-100, Germany) at 70 °C for 72 hours. Dried vegetable samples were ground with a pestle in a mortar to a fine powder and sieved through a muslin cloth. All the powdered samples were saved in polythene bags until used for analysis.

Chemicals

All the required chemicals (analytical grade) and standards of heavy metals (1000 mg L^-1); namely lead (Pb), copper (Cu), nickel (Ni), cadmium (Cd), iron (Fe) and chromium (Cr) were obtained from Merck. All the glassware used was washed with detergent and finally rinsed with distilled water.

Acid Digestion and Analysis

For heavy metals extraction, 0.5 g dried sample (three replicates for each vegetable) from each treatment were digested in 15 mL HNO₃ and 5 mL HClO₄ mixture (3:1) on a hot plate (Velp, Italy) at 80 ºC until a transparent solution was obtained. These transparent solutions were filtered through Whatman No. 42 filter paper and diluted in 25 mL deionized water (Farooq et al., 2008). The concentrations of heavy metals (Pb, Ni, Cu, Cd, Fe and Cr) in the filtrate were determined by using an atomic absorption spectrophotometer (Thermo Scientific 3000 series, USA).

Statistical Analysis

The data recorded were subjected to analysis of variance (ANOVA). The experiments for each vegetable were conducted independently in randomized complete block design (RCBD) having factorial arrangements with three replications. Least Significant Difference (LSD) test was employed to evaluate significant differences among the treatment means at probability level of 5%. Statistical software Statistix 8.1 was used to analyze the data (Steel et al., 1997).

RESULTS

Plant Growth

The data procured during the two years of study on growth of tomato and okra is presented in Table 1. The growth of these crops in terms of plant height, relative leaf chlorophyll content and leaf area was significantly affected by the irrigation sources. Sewage water resulted in greater plant height and relative leaf chlorophyll content when compared with canal water or tube-well water (Table 1). There was no significant difference in plant height and relative leaf chlorophyll content under tube-well water and canal water irrigation. Sewage water also resulted in the maximum leaf area of tomato and okra, which was followed by canal water and it was reduced significantly in plots where tube-well water was applied. However, these three treatments differed significantly from each other (Table 1).

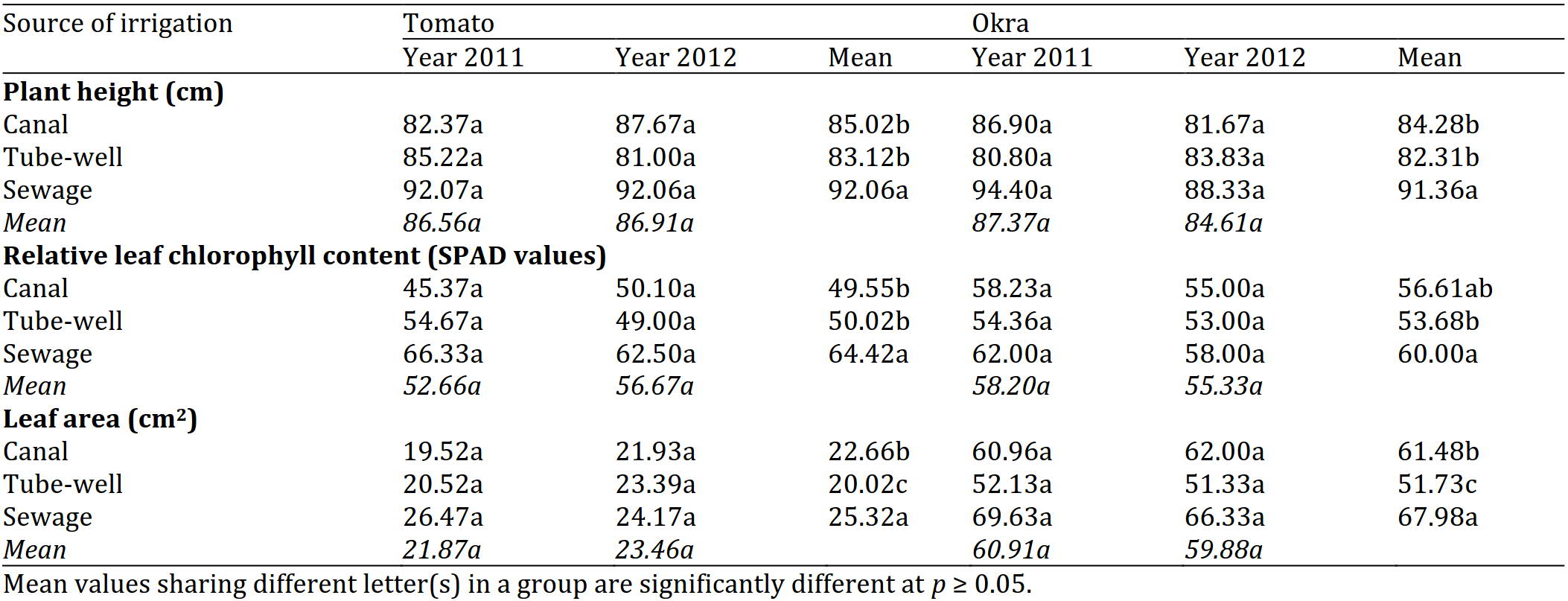

Table 1: Effect of different irrigation sources on growth of tomato and okra.

Yield Attributes and Final Yield

Irrigation sources significantly affected number of fruits per tomato plant, number of pods per okra plant, fruit length of tomato, and pod length and diameter of okra. Significantly greater number of tomato fruits and okra pods per plant was produced due to sewage water irrigation. Canal and tube-well water irrigation resulted in statistically similar number of tomato fruits and okra pods. Longer tomato fruits and okra pods were produced in sewage water irrigated plants, which was followed by canal water irrigated plants. However, these two irrigation sources were statistically different. Fruit and pod length were the shortest in the plants grown with tube-well water. Sewage water also resulted in the maximum pod diameter, followed by canal water, both the irrigation sources behaved statistically alike. The minimum diameter was recorded in the pods harvested from the tube-well water irrigated okra, followed by canal water irrigated ones. These two irrigation sources were also statistically similar(Table 2). Significantly greater fresh and dry weights per fruit and fruit yield per hectare of tomato were recorded from sewage water irrigated plants, followed by those irrigated with canal water, whereas the minimum fresh and dry fruit weights and yield were recorded in the plants irrigated with tube-well water. However, these three irrigation sources differed significantly from each other. Similarly, significantly greater fresh and dry weights per okra pod were observed in sewage water irrigated plants. Whereas, tube-well water resulted in lower fresh weights per pod, which were statistically at par with canal water. The maximum tomato fruit yield and okra pod yield per hectare were attained with sewage water irrigation, which were significantly greater than those of canal and tube-well water. Whereas, the minimum yields were recorded with tube-well water irrigation. These three irrigation treatments were statistically different from each other (Table 3). The interaction between irrigation sources and years also had significant effect on fresh and dry weights of tomato fruit. Significantly greater fresh and dry fruit weights were recorded with interactive effect of sewage water × 2012 and sewage water × 2011. These two treatment combinations were statistically at par. The minimum fresh and dry weights of tomato fruit were recorded with the combined effect of tube-well water × 2012, which was also statistically at par with the treatment combination tube-well water × 2011 (Table 3).

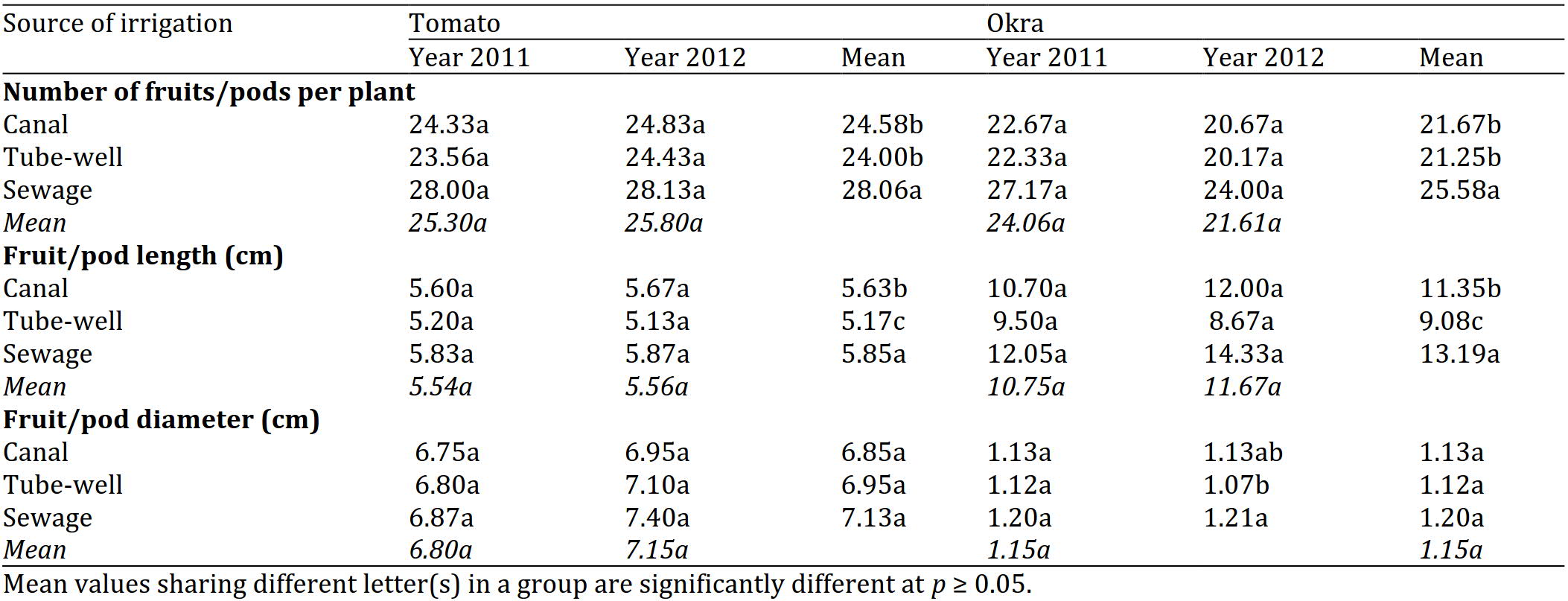

Table 2: Effect of different irrigation sources on yield components of tomato and okra.

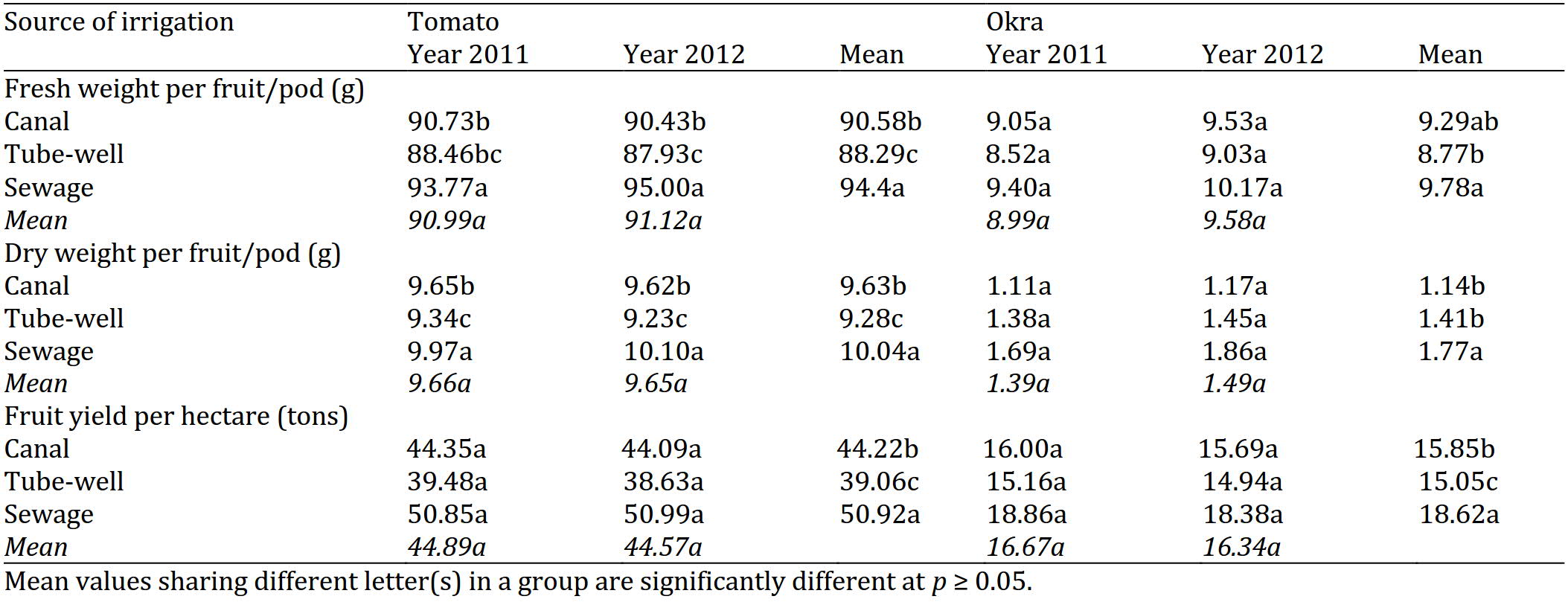

Table 3: Effect of different irrigation sources on yield of tomato and okra.

Biomass Production (on fresh and dry weight basis)

Various irrigation sources applied had significant influence on total fresh and dry plant biomasses of both tomato and okra. Significantly greater total fresh and dry plant biomass was observed in the sewage water irrigated plants compared with canal and tube-well water irrigated plants. Whereas, canal and tube-well water were statistically similar with lower total biomass (Table 4).

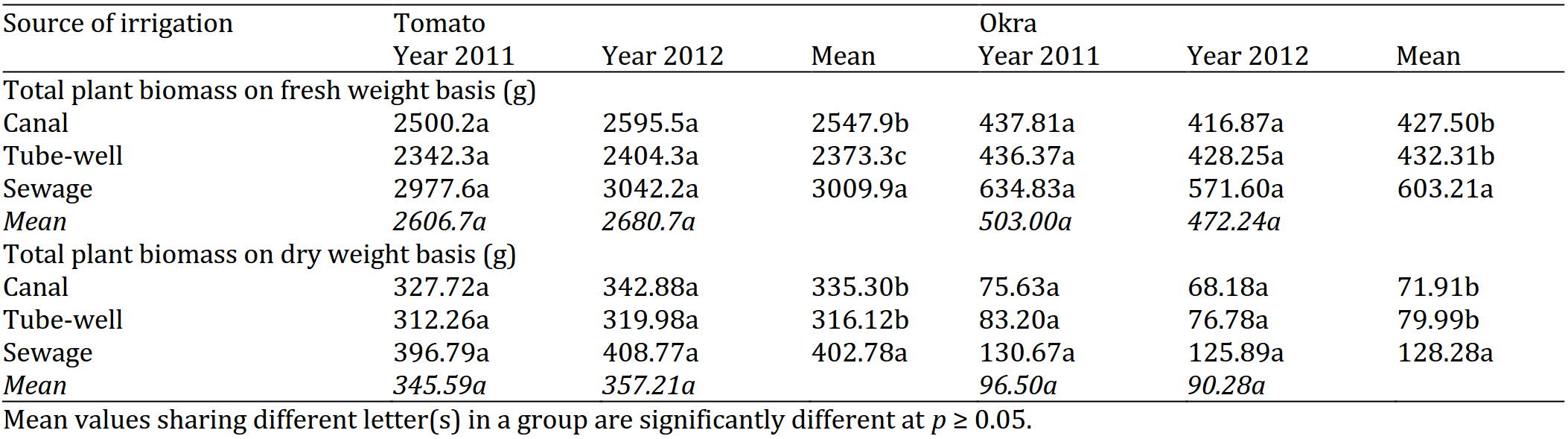

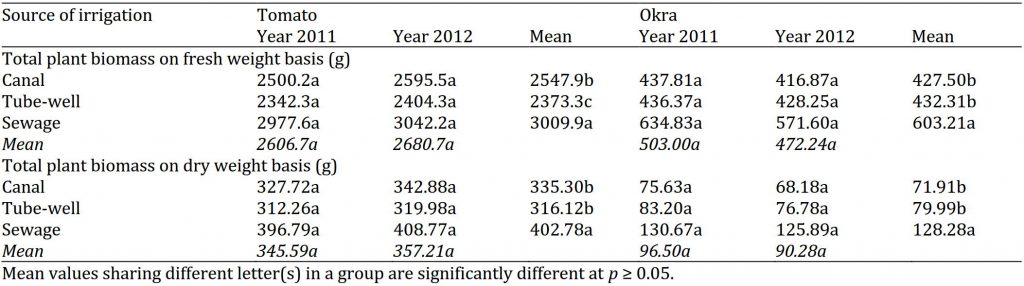

Table 4: Effect of different irrigation sources on biomass production of tomato and okra.

Heavy Metals Contents in Tomato Fruits and Okra Pods

Significantly higher Pb and Ni contents were recorded in both sewage water irrigated tomato and okra plants, preceded by those irrigated with canal and tube-well (Table 5). Canal and tube-well water were statistically similar with lower contents (Pb and Ni). Sewage water irrigated tomato plants also contained significantly greater Cd, Cu, Fe and Cr contents in their fruits. Whereas, significantly lower Cd, Cu, Fe and Cr content were recorded in tube-well water irrigated fruits. Greater Cd content was recorded in pods of the sewage water irrigated okra plants compared with those irrigated with canal or tube-well water. Whereas, the minimum and statistically similar Cd content was recorded in canal and tube-well water. Sewage water also resulted in significantly greater Cu, Fe and Cr contents in okra pods, followed by canal water. However, these two irrigation sources were significantly different from each other. Whereas, significantly lesser contents (Cu, Fe and Cr) were recorded in pods of the plants irrigated with tube-well water (Table 5).

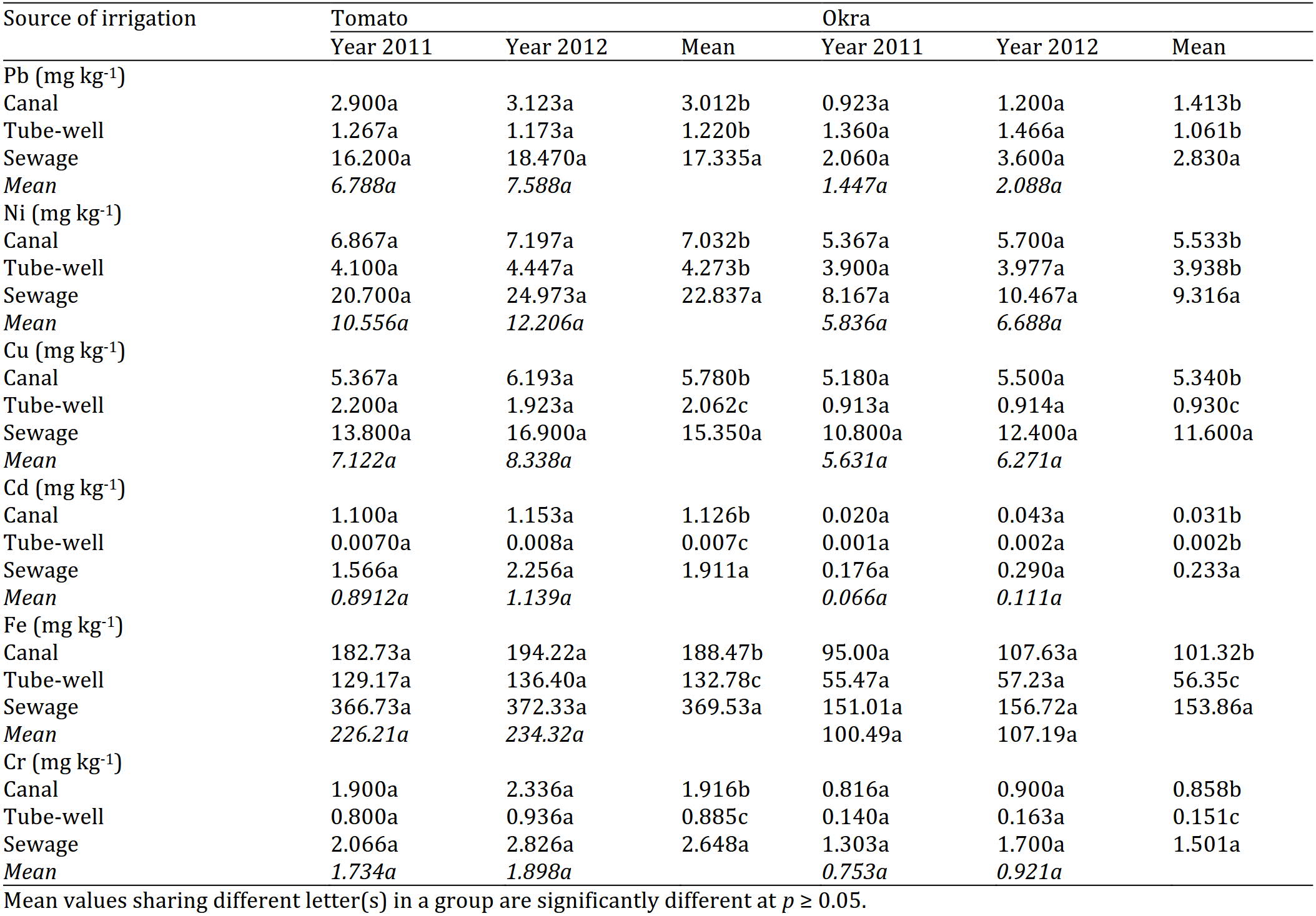

Table 5: Effect of different irrigation sources on heavy metals contents in tomato fruits and okra pods.

Heavy Metals Contents in Tomato and Okra Leaves

Among the irrigation sources, sewage water irrigated leaf samples of tomato plants contained higher Pb and Ni contents as compared to canal and tube-well water irrigated samples. While, tube-well and canal water were statistically at par with lower contents. Significantly greater Cu, Cd, Fe and Cr contents were recorded in leaves of sewage water irrigated tomato plants compared with those of irrigated with canal or tube-well water. Whereas, these contents were significantly lower in leaf samples of tube-well water irrigated plants (Table 6).

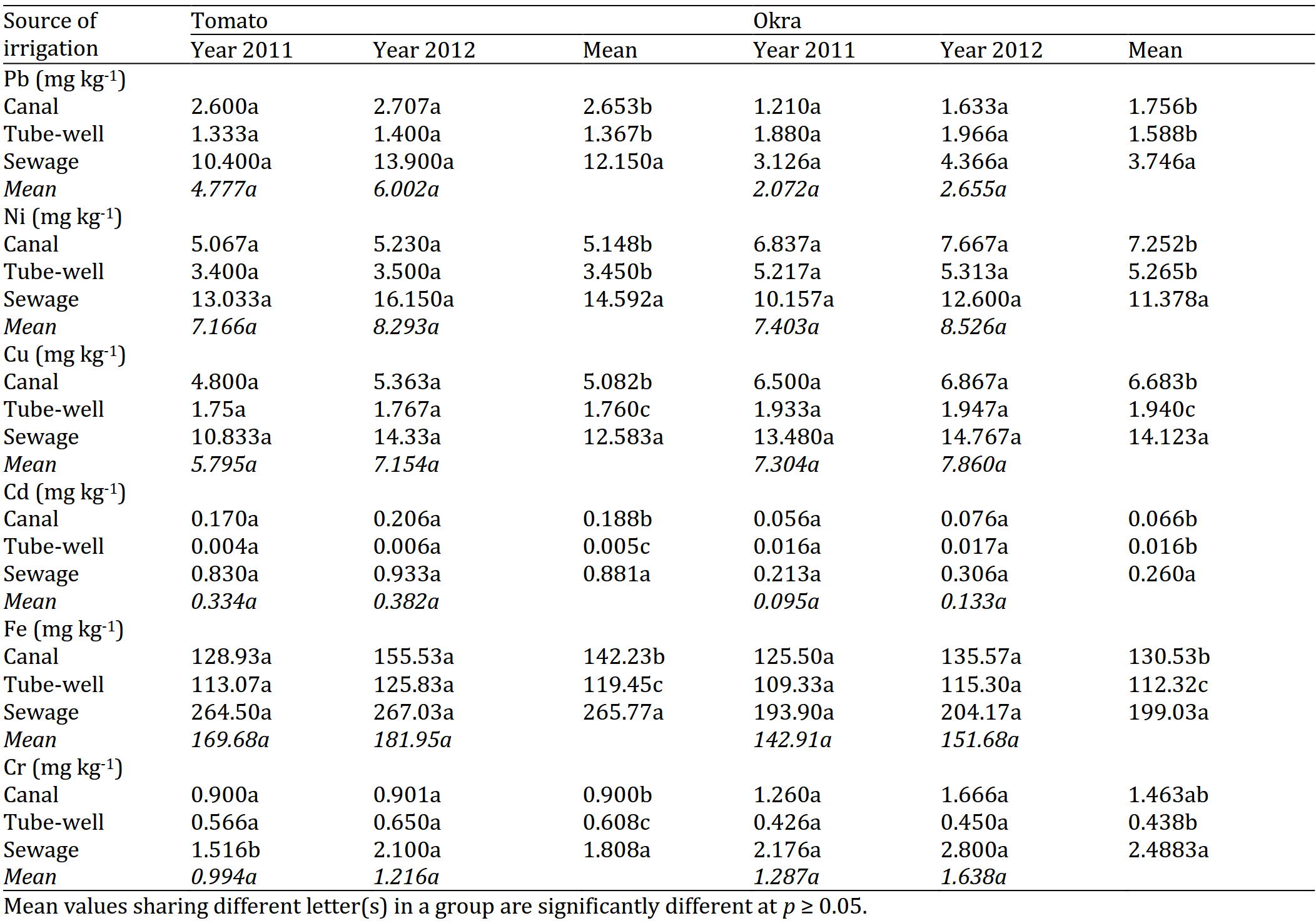

Table 6: Effect of different irrigation sources on heavy metals contents in tomato and okra leaves.

Okra plants irrigated with sewage water resulted in significantly greater Pb, Ni and Cd contents in their leaf samples than those irrigated with canal or tube-well water. Canal and tube-well water did not differ significantly and resulted in lower Pb, Ni and Cd contents. Okra leaves contained significantly higher Cu and Fe contents in sewage water irrigated plants. While, significantly lesser contents (Cu and Fe) were recorded in tube-well water irrigated plants. The maximum Cr content was found in leaves of sewage water irrigated plants, followed by canal water. These two irrigation sources were statistically similar, while the minimum Cr content was recorded in tube-well irrigated leaf samples, which was also statistically at par with canal water (Table 6).

Heavy Metals Contents in Tomato and Okra Roots

Significantly greater heavy metals contents (Pb, Ni, Cu, Cd, Fe and Cr) were recorded in roots of tomato irrigated with sewage water. Heavy metals contents were significantly lower in roots of the plants irrigated with tube-well water. All the three irrigation sources were significantly different from each other for all the heavy metals separately (Table 7).

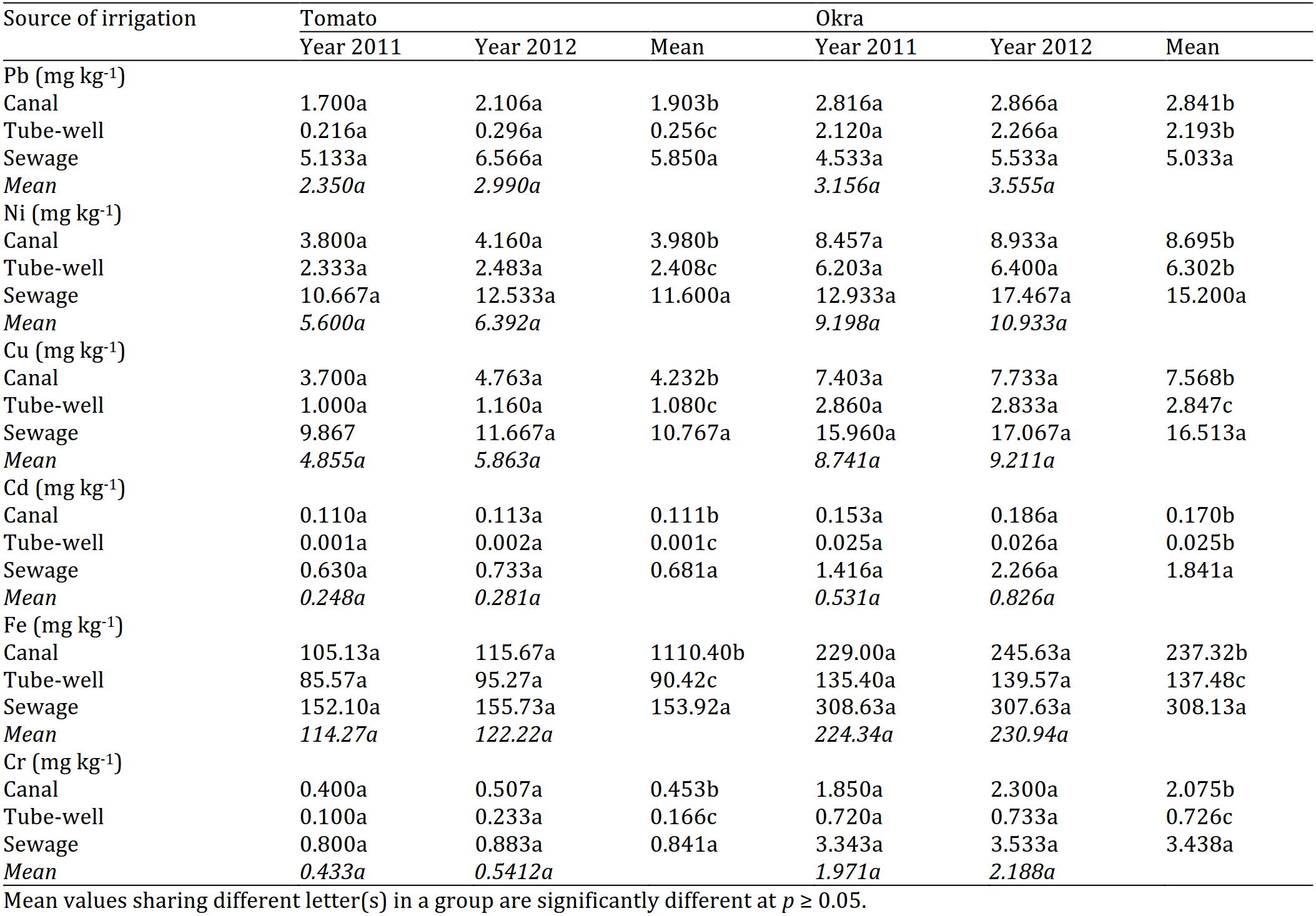

Table 7: Effect of different irrigation sources on heavy metals contents in tomato and okra roots.

The mean values of irrigation sources indicated that the Pb, Ni and Cd contents were significantly higher in roots of the okra plants irrigated with sewage water compared with canal or tube-well water. However, canal and tube-well water were statistically at par with lower contents (Pb, Ni and Cd). Significantly higher Cu, Fe and Cr contents were recorded in roots of the plants irrigated with sewage water. While, significantly lower Cu, Fe and Cr contents were observed in roots of the plants grown with tube-well water. The roots of the plants irrigated with canal water had intermediate levels of these metals and were statistically different from those irrigated with other two irrigation sources (Table 7).

DISCUSSION

Plant Growth

Remarkable increase in the plant height of tomato and okra was observed with the application of sewage water when compared with canal water and tube-well water application (Table 1). Similar trend was also noticed in tomato by Khan et al. (2011), who reported significantly greater plant height in waste water irrigated plants and the lowest in tube-well water grown plants. Thapliyal et al. (2011) observed taller okra plants when grown with waste water, which was possibly associated with the increase in nutrient availability due to sewage water over rain water. Similarly, greater plant height was also recorded in okra plants irrigated with sewage effluent as compared to stream water (Adewoye et al., 2010). Greater plant height with sewage water application might be associated with the presence of important plant macro- and micro-nutrients in this water.

Higher relative chlorophyll content was recorded in leaves of sewage water irrigated tomato plants compared with those of irrigated with canal and tube-well water (Table 1). This higher relative chlorophyll contents in leaves of the plants irrigated with sewage water might be associated with greater availability of macro and microelements due to sewage water application. These nutrients, when taken up by plants, improve growth and enhance leaf chlorophyll content (Zavadil, 2009; Khan et al., 2011; Balkhair et al., 2013). The present results are in line with the conclusions of Esmailian et al. (2011), Thapliyal et al. (2011) and Chalkoo et al. (2013), who recorded the maximum chlorophyll contents in leaves of Capsicum annuum, corn and okra, respectively, grown with waste water. Singh and Agrawal (2009) also found more chlorophyll content in leaves of okra plants grown with sewage sludge.

The leaf area of the vegetables i.e. tomato and okra was increased significantly due to the application of sewage water (Table 1) when compared with other two sources of irrigation. Tube-well water application resulted in significantly lower leaf area. The present study is closely related with the findings of Thapliyal et al. (2011) and Chalkoo et al. (2013), who recorded greater leaf area in waste water irrigated okra and sweet pepper plants, respectively, might be due to more provision of nutrients by waste water. Enhanced photosynthetic activity increases leaf area which largely depends on more nutrients and organic matter availability. Waste water is the major source of organic matter and nutrients and thus tends to enhance the leaf area (Chandra et al., 2009), leading to enhanced photosynthetic activity (Jarvis et al., 1976) and improved CO₂ fixation. Therefore, improved growth of the vegetables crops was directly linked with larger provision of nutrients constantly for longer periods from sewage water.

Table 7: Effect of different irrigation sources on heavy metals contents in tomato and okra roots. Yield and its Components

Various sources of irrigation used had profound influence on number of fruits. Significantly higher number of tomato fruits and okra pods were observed in the sewage water irrigated plants than those of canal and tube-well water irrigated ones (Table 2). Fruit length of tomato varied significantly due to irrigation with different sources of water and was in order: sewage water > canal water > tube-well water. Okra pod length was also significantly greater in plants which were irrigated with sewage water, preceded by those irrigated with canal water. Similarly, okra pod diameter was greater in sewage water grown plants, followed by those with canal water. However, in the present study tomato fruit diameter was not affected by the irrigation sources. The present results are in line with Thapliyal et al. (2011) and Chalkoo et al. (2013), who counted higher number of fruits per plant and greater fruit length in okra and sweet pepper, respectively, irrigated with waste water. Adewoye et al. (2010) also recorded higher number of pods when plants were grown with sewage effluent as compared to stream water.

In the present study, fresh and dry weights of individual fruit and yield per hectare were significantly increased in tomato and okra by sewage water application compared with canal and tube-well water applications. The increased fruit yield of tomato plants grown with sewage water was also obtained by Onal et al. (2003), Topcuoglu et al. (2003) and Ozyazici (2013). Application of waste water also increased the production of peppers (Chalkoo et al., 2013). Similarly, Adewoye et al. (2010) also recorded higher yield of okra grown with sewage effluents compared with stream water. Greater yield of sweet pepper and eggplant was obtained when waste water was used as irrigation source compared with fresh water (Papadopoulos et al., 2013). Application of waste water tends to enhance total N, total C and soil microbial activity and as a result, the nutrient availability is increased to plants (Friedel et al., 2000; Ramirez-Fuentes et al., 2002; Mekki et al., 2006). Waste water not only contained greater quantity of macronutrients, but also had higher contents of micronutrients essential for proper plant growth (Angin et al., 2005). Thus, use of waste water improves the fertility level of soil and decreases the usage of fertilizers and finally improves the economic benefits to the farmers.

Biomass Production (on fresh and dry weights basis)

Fresh and dry biomass production of vegetables was significantly affected due to various sources of irrigation (Table 3). This increase was possibly due more availability of nutritious elements to the plants irrigated with sewage water. Khan et al. (2011) documented higher fresh and dry biomass in waste water irrigated tomato plants than fresh water irrigated ones. Dry matter of tomato plant was also increased with the application of sewage water (Onal et al., 2003; Singh and Agrawal, 2009; Balkhair et al., 2013). Thapliyal et al. (2011) also reported greater total fresh or dry biomass of okra plants grown with waste water compared to rain water. Irrigating crops with waste water enhances biomass production as it provides bigger quantity of organic and inorganic components important for excellent growth and development of plants (Ullah et al., 2011; Gosh et al., 2012).

Heavy Metals Accumulation in Tomato and Okra

Different water sources used for irrigation significantly influenced the heavy metals contents of tomato fruits and okra pod, leaves and roots. Greater values of heavy metals contents (Pb, Ni, Cu, Cd, Fe and Cr) were detected in sewage water irrigated root, leaf and fruit samples of tomato, followed by canal water, whereas, the lesser in tube-well water irrigated ones (Table 5, 6 and 7). This also demonstrated that the plants grown on infected soils accumulated more and those grown on unpolluted soils contained lower amounts of heavy metals (Hooda et al., 1997; Pinochet et al., 1999; Butt et al., 2005). Therefore, the soils irrigated with sewage water continuously for longer periods can buildup higher metals contents and resultantly higher uptake and accumulation in different parts of the vegetables grown on these soils. The present results are in agreement with the conclusions of Lone et al. (2003) and Pathak et al. (2012), who detected higher Pb, Ni, Cu, Cd, Fe and Cr contents in pods from sewage water irrigated okra plants compared with those of tube-well water irrigated ones. The present results are also in line with the findings of Randhawa et al. (2014), who recorded higher Pb and Cd contents and Farid (2003), who observed higher Pb content in pods of okra irrigated with sewage water. Onianwa et al. (2001), Yusuf et al. (2003) and Chunilal et al. (2004) found that Ni and Cu contents present in soil can be taken up by the vegetables. Pods from sewage and canal irrigated okra plants had more content of Cd. This might be due to the reason that sewage and canal waters and the soils irrigated with these waters contained more Cd content, resulting in increased Cd accumulation in pod of the plants grown on these contaminated soils. Higher Fe and Cr contents in sewage water irrigated okra plant parts indicate the occurrence of higher amount of these heavy metals in sewage water and soil. Khan et al. (2013) recorded higher Cr content in pod samples of okra irrigated with waste water. The Cr content in okra pods of the present study (Table 5) was several folds higher than the values stated by Sujatha et al. (2013).

Higher Pb and Cd concentrations in sewage water irrigated leaf samples might be attributed due to different industrial effluents operating near the experimental area. Industrial wastes and effluents are drained into canals, which contain heavy metals, therefore more Pb and Cd were detected in canal irrigated leaf samples. Sewage water contained domestic as well as industrial effluents. Rolli (2014) also detected higher Cu and Ni contents above safer limits in leaves, roots and fruits of tomato plants irrigated with sewage water. These results are in line with the conclusions of Khan et al. (2011), who found higher Pb, Ni, Cu and Fe contents in leaves and fruits of tomato plants grown with waste water. Butt et al. (2005) and Randhawa et al. (2014) also observed higher Pb, Ni, Cu and Cd contents in tomato and brinjal fruit samples, respectively irrigated with sewage water. Similarly, Yadav et al. (2013) reported greater Pb, Ni, Cu, Cd and Fe contents in tomato fruits grown with waste water. Accumulation of Cu in waste water-irrigated tomato fruits were also found higher and above the safer limits (Liu et al., 2005; Singh et al., 2010). Cd content detected in the present study (Table 5) is in line with those reported by Cui et al. (2004). Industrial emission, discharge of lead storage batteries, paints or pigments and sewage water are the main sources of Pb. The present results are in close conformity of Arora et al. (2008), who reported higher metals accumulation in waste water irrigated vegetables compared with those of irrigated with fresh water. The differences in metals contents of tomato fruits in the present study and previous studies might be due to the physico-chemical properties of soil, different nature of plants and their metals absorption capacities. Different soil factors like pH, cation exchange capacity, organic matter, texture and clay content affect the heavy metals accumulation (Overesch et al., 2007). The heavy metals accumulation is also affected by plants parts and age of the plant (Liu et al., 2007). Khan et al. (2008) also reported higher Cr content in leaves of tomato when irrigated with waste water. Greater Cr accumulation in leaves was possibly associated with higher contents of Cr in sewage water as well as the soil. Excessive use of fertilizers, irrigation with waste water and use of soils polluted with urban and industrial effluents are the major factors responsible for increasing Cr content in soil and crops. The current results are in agreement with the conclusions of Perveen et al. (2011), who reported higher Fe content in vegetables irrigated with sewage water, which was above the safe limits. They further stated that Fe content was higher in leaves compared with edible portions. The higher metals contents in sewage water irrigated tomato roots indicate the presence of higher levels of these metals in soil and sewage water.

The crops grown with polluted water accumulate more heavy metals contents than those grown with unpolluted water (Butt et al., 2005). The vegetables irrigated with sewage water can enhance the transfer of heavy metals contents to edible parts. Increased Pb, Cd, Fe and Cr contents in canal irrigated tomato fruits might be due to industrial and sewage effluents drained in canal water which contains heavy metals and its use for irrigation purposes. Cd is highly mobile, easily absorbed by plants via roots and then transferred to aerial parts. Thus, roots of eggplant contained increased Cd content when plants were irrigated with waste water (Bigdeli and Seilsepour, 2008). Cd content detected in the present study (Table 7) is also in line with those reported by Cui et al. (2004).

ACKNOWLEDGEMENTS

This manuscript is a part of Ph.D. thesis of Dr. Safina Naz, Department of Horticulture, Bahauddin Zakariya University, Multan. The authors are highly grateful to the Higher Education Commission of Pakistan for funding the research.

REFERENCES

Adewoye, A.O., Okunade, D.A. and Adekalu, K.O. 2010. Assessing the yields and nutrient uptake of okra (Abelmoschus esculentus) using diluted stabilized waste water for irrigation in South -Western Nigeria. Journal of Waste Water Treatment Analysis, 1(2): 1-4. [Abstract/FREE full text, Google Scholar]

Akhtar, S. 2015. Food safety challenges – a Pakistan’s perspective. Critical Reviews in Food Science and Nutrition, 55(2): 219-226. [Abstract/FREE full text, PubMed, Google Scholar]

Angin, I., Yaganoglu, A.V. and Turan, M. 2005. Effects of long-term waste water irrigation on soil properties. Journal of Sustainable Agriculture, 26(3): 31-42. [Abstract/FREE full text, Google Scholar]

Arora, M., Kiran, B., Rani, S., Rani, A., Kaur, B. and Mittal, N. 2008. Heavy metal accumulation in vegetables irrigated with water from different sources. Food Chemistry, 111(4): 811-815. [Abstract/FREE full text, Google Scholar]

Balkhair, K.S., El-Nakhlawi, F.S., Ismail, S.M. and Al-Solimani, S.G. 2013. Treated waste water use and its effect on water conservation, vegetative yield, yield components and water use efficiency of some vegetable crops grown under two different irrigation systems in Western region, Saudi Arabia. European Scientific Journal, 9(21): 395-402. [Abstract/FREE full text, Google Scholar]

Banerjee, D., Kuila, P., Ganguli, A., Das, D., Mukherjee, S. and Ray, L. 2011. Heavy metal contamination in vegetables collected from market sites of Kolkata, India. Electronic Journal of Environmental, Agricultural and Food Chemistry, 10(4): 2160-2165. [Abstract/FREE full text, Google Scholar]

Bigdeli, M. and Seilsepour, M. 2008. Investigation of metals accumulation in some vegetables irrigated with waste water in Shahre Rey-Iran and toxicological implications. American-Eurasian Journal of Agricultural and Environmental Sciences, 4(1): 86-92. [Abstract/FREE full text, Google Scholar]

Butt, M.S., Sharif, K., Bajwa, B.E. and Aziz, A. 2005. Hazardous effect of sewage water on the environment; focus on heavy metals and chemical composition of soil and vegetables. Management of Environmental Quality, 16(4): 338-346. [Abstract/FREE full text, Google Scholar]

Chalkoo, S., Inam, A., Iqbal, S. and Sahay, S. 2013. Growth and photosynthetic response of Capsicum annuum L. under phosphorus fertilization with waste water. Open Peer Review Policy (OPRP) Status, 2(2): 1-24.

Chandra, R., Bharagava, R.N., Yadav, S. and Mohan, D. 2009. Accumulation and distribution of toxic metals in wheat (Triticum aestivum L.) and Indian mustard (Brassica campestris L.) irrigated with distillery and tannery effluents. Journal of Hazardous Materials, 162(2): 1514-1521. [Abstract/FREE full text, PubMed, Google Scholar]

Chunilall, V., Kindness, A. and Jonnalagadda, S.B. 2004. Heavy metal uptake by spinach leaves grown on contaminated soils with lead, mercury, cadmium and nickel. Journal of Environmental Science and Health, 39(3): 473-481. [Abstract/FREE full text, PubMed, Google Scholar]

Cui, Y.J., Zhu, Y.G., Zhai, R.H., Chen, D.Y., Huang, Y.Z., Qui, Y. and Liang, J.Z. 2004. Transfer of metals from soil to vegetables in an area near a smelter in Nanning, China. Environment International, 30(6): 785-791. [Abstract/FREE full text, PubMed, Google Scholar]

D’Mello, J.P.F. 2003. Food Safety: Contaminants and Toxins. CABI Publishing, Cambridge. [Abstract/FREE full text, Google Scholar]

Esmailian, Y., Ghanbari, A., Babaeian, M. and Tavassoli, A. 2011. Influence of organic and inorganic fertilizers and waste water irrigation on yield and quality traits of corn. American-Eurasian Journal of Agriculture and Environmental Science, 10(4): 658-666. [Abstract/FREE full text, Google Scholar]

Farid, S. 2003. Toxic element concentration in vegetables irrigated with untreated city effluents. Science, Technology and Development, 22(4): 58-60.

Farooq, M., Anwar, F. and Rashid, U. 2008. Appraisal of heavy metal contents in different vegetables grown in the vicinity of an industrial area. Pakistan Journal of Botany, 40(5): 2099-2106. [Abstract/FREE full text, Google Scholar]

Friedel, J.K., Langer, T., Siebe, C. and Stahr, K. 2000. Effects of long-term waste water irrigation on soil organic matter, soil microbial biomass and its activities in central Mexico. Biology and Fertility of Soils, 31(5): 414-421. [Abstract/FREE full text, Google Scholar]

Gleick, P.H. 2003. Global freshwater resources: soft-path solutions for the 21^st century. Science, 302(5650): 1524-1528. [Abstract/FREE full text, PubMed, Google Scholar]

Gosh, A.K., Bhatt, M.A and Agrawal, H.P. 2012. Effect of long-term application of treated sewage water on heavy metal accumulation in vegetables grown in Northern India. Environmental Monitoring and Assessment, 184(2): 1025-1036. [Abstract/FREE full text, PubMed, Google Scholar]

Harati, M. 2003. Study on heavy metal accumulation in different parts of corn irrigated by sewage in south of Tehran. M.Sc. Thesis. Tehran University, Tehran, Iran.

Hooda, P.S., McNulty, D., Alloway, B.J. and Aitken, M.N. 1997. Plant availability of heavy metals in soils previously amended with heavy applications of sewage sludge. Journal of the Science of Food and Agriculture, 73(4): 446-454. [Abstract/FREE full text, Google Scholar]

Jarvis, S.C., Jones, L.H.P. and Hooper, M.J. 1976. Cadmium uptake from solution by plants and its transport from roots to shoot. Plant and Soil, 44(1): 179-191. [Abstract/FREE full text, Google Scholar]

Khalil, S. and Kakar, M.K. 2011. Agricultural use of untreated urban waste water in Pakistan. Asian Journal of Agriculture and Rural Development, 1(1): 21-26. [Abstract/FREE full text, Google Scholar]

Khan, S., Cao, Q., Zheng, Y.M., Huang, Y.Z. and Zhu, Y.G. 2008. Health risks of heavy metals in contaminated soils and food crops irrigated with waste water in Beijing, China. Environmental Pollution, 152(3): 686-692. [Abstract/FREE full text, Google Scholar]

Khan, M.J., Jan, M.T., Farhatullah, N.U., Khan, M.A., Perveen, S., Alam, S. and Jan, A.U. 2011. The effect of using waste water for tomato. Pakistan Journal of Botany, 43(2): 1033-1044.

Khan, K., Lu, Y., Khan, H., Ishtiaq, M., Khan, S., Waqas, M., Wei, L. and Wang, T. 2013. Heavy metals in agricultural soils and crops and their health risks in Swat District, northern Pakistan. Food and Chemical Toxicology, 58(1): 449-458. [Abstract/FREE full text, Google Scholar]

Liu, W.H., Zhao, J.Z., Ouyang, Z.Y., Soderlund, L. and Liu, G.H. 2005. Impacts of sewage irrigation on heavy metals distribution and contamination. Environment International, 31(6): 805-812. [Abstract/FREE full text, Google Scholar]

Liu, W.X., Shen, L.F., Liu, J.W. and Wang, Y.W. 2007. Uptake of toxic heavy metals by rice (Oryza sativa L.) cultivated in the agricultural soil near Zhengzhou city, People’s Republic of China. Bulletin of Environmental Contamination and Toxicology, 79(2): 209-213. [Abstract/FREE full text, PubMed, Google Scholar]

Lone, M.I., Saleem, S., Mahmood, T., Saifullah, K. and Hussain, G. 2003. Heavy metal contents of vegetables irrigated by sewage/tubewell water. International Journal of Agriculture and Biology, 15(4): 533-535. [Abstract/FREE full text, Google Scholar]

Mapanda, F., Mangwayana, E.N., Nyamangara, J. and Giller, K.E. 2005. The effect of long-term irrigation using waste water on heavy metal contents of soil under vegetables in Harare, Zimbabwe. Agriculture, Ecosystems and Environment, 107(2): 151-165. [Abstract/FREE full text, Google Scholar]

Mekki, A., Dhoub, A. and Sayadi, S. 2006. Changes in microbial and soil properties following amendment with treated and untreated olive mill waste water. Microbiological Research, 161(2): 93-101. [Abstract/FREE full text, PubMed, Google Scholar]

Mosleh, Y.Y.I. and Almagrabi, O.A.E. 2013. Heavy metal accumulation in some vegetables irrigated with treated waste water. International Journal of Green and Herbal Chemistry, 2(1): 81-90.

Muchuweti, M., Birkett, J.W., Chinyanga, E., Zvauya, R., Scrimshaw, M.D. and Lester, J.N. 2006. Heavy metal content of vegetables irrigated with mixture of waste water and sewage sludge in Zimbabwe: Implications for human health. Agriculture, Ecosystems and Environment, 112(1): 41-48. [Abstract/FREE full text, Google Scholar]

Murtaza, G., Ghafoor, A., Qadir, M., Owens, G., Aziz, M.A. and Zia, M.H. 2010. Disposal and use of sewage on agricultural lands in Pakistan: A review. Pedosphere, 20(1): 23-34. [Abstract/FREE full text, Google Scholar]

Nagajyothi, P.C., Dinakr, N., Suresh, S., Udaykiran, Y., Suresh, C. and Damodharam, T. 2009. Effect of industrial effluent on the morphological parameters and chlorophyll content of green gram (Phaseolus aureus Roxb). Journal of Environmental Biology, 30(3): 385-388. [Abstract/FREE full text, PubMed, Google Scholar]

Nath, K., Singh, D., Shyam, S. and Sharma, Y.K. 2009. Phytotoxic effects of chromium and tannery effluent on growth and metabolism of Phaseolus mungo Roxb. Journal of Environmental Biology, 30: 227-234. [Abstract/FREE full text, PubMed, Google Scholar]

Önal, M.K., Topcuoğlu, B. and Arı, N. 2003. Effect of municipal sewage sludge on tomato plants and soil: Fruits and fruit development in mineral contents features. Mediterranean University Faculty of Agriculture Journal, 16(1): 97-106.

Onianwa, P.C., Adeyemo, A.O., Idowu, O.E. and Ogabiela, E.E. 2001. Copper and zinc contents of Nigerian foods and estimates of the adult dietary intakes. Food Chemistry, 72(1): 89-95. [Abstract/FREE full text, Google Scholar]

Overesch, M., Rinklebe, J., Broll, G. and Neue, H.U. 2007. Metals and arsenic in soils and corresponding vegetation at central Elbe River flood plains (Germany). Environmental Pollution, 145(3): 800-812. [Abstract/FREE full text, PubMed, Google Scholar]

Özyazıcı, M.A. 2013. Effects of sewage sludge on the yield of plants in the rotation system of wheat-white head cabbage-tomato. Eurasian Journal of Soil Science, 2(1): 35-44. [Abstract/FREE full text, Google Scholar]

Papadopoulos, I., Chimonidou, D., Polycarpou, P. and Savvides, S. 2013. Irrigation of vegetables and flowers with treated wastewater. Agricultural Research Institute, 1516. [Abstract/FREE full text, Google Scholar]

Pathak, C., Chopra, A.K. and Srivastava, S. 2012. Various metals in Abelmoschus esculentus grown in waste water irrigated soil area of Dehradun city, India. Journal of Applied and Natural Science, 4(2): 291-296. [Abstract/FREE full text, Google Scholar]

Patra, A.K., Wagh, S.S., Jain, A.K. and Hegde, A.G. 2010. Assessment of daily intake of trace elements by Kakrapar adult population through ingestion pathway. Environmental Monitoring and Assessment, 169(1-4): 267-272. [Abstract/FREE full text, PubMed, Google Scholar]

Perveen, S., Shah, Z., Nazif, W., Shah, S.S., Ihsanullah, I. and Shah, H. 2011. Study on accumulation of heavy metals in vegetables receiving sewage water. Journal of the Chemical Society of Pakistan, 33(2): 220-227. [Abstract/FREE full text, Google Scholar]

Pinochet, P., De Gregort, I., Lobos, M.G. and Fuentes, E. 1999. Selenium and copper in vegetables and fruits grown on long-term impacted soils from Valparaiso region, Chile. Bulletin of Environmental Contamination and Toxicology, 63(3): 327-334. [Abstract/FREE full text, PubMed, Google Scholar]

Qadir, M., Wichelns, D., Raschid-Sally, L., McCornick, P.G., Derchsel, P., Bhari, A. and Minhas, P.S. 2008. The challenges of waste water irrigation in developing countries. Agricultural Water Management, 97(4): 561-568. [Abstract/FREE full text, Google Scholar]

Rai, S., Chopra, A.K., Pathak, C., Sharma, D.K., Sharma, R. and Gupta, P.M. 2011. Comparative study of some physicochemical parameters of soil irrigated with sewage water and canal water of Dehradun city, India. Archives of Applied Science Research, 3(2): 318-325. [Abstract/FREE full text, Google Scholar]

Ramirez-Fuentes, E., Lucho-Constantino, C., Escamilla-Silva, E. and Dendooven, L. 2002. Characteristics and carbon and nitrogen dynamics in soil irrigated with waste water for different length of time. Bioresource Technology, 85(2): 179-187. [Abstract/FREE full text, PubMed, Google Scholar]

Randhawa, M.A., Ahmad, G., Anjum, F.M., Asghar, A. and Sajid, M.W. 2014. Heavy metal contents and their daily intake in vegetables under peri-urban farming system of Multan. Pakistan Journal of Agricultural Sciences, 51(4): 1025-1031. [Abstract/FREE full text, Google Scholar]

Rolli, N.M. 2014. Heavy metal accumulation in vegetables irrigated with sewage and its impact on health. Research Journal of Recent Sciences, 3: 81-84. [Abstract/FREE full text, Google Scholar]

Segura, M.L., Grandos, M.R., Moreno, J. and Urrestarazu, M. 2002. Response of greenhouse melon and tomato crops to waste water fertigation. In: XXVI International Horticultural Congress: Protected Cultivation: In Search of Structures, Systems and Plant Materials for 633, 11^th August, 2002. pp. 391-396. [Google Scholar]

Sharma, R.K., Agrawal, M. and Marshall, F. 2007. Heavy metal contamination of soil and vegetables in suburban areas of Varanasi, India. Ecotoxicology and Environmental Safety, 66(2): 258-266. [Abstract/FREE full text, PubMed, Google Scholar]

Sharma, R.K., Agarwal, M. and Marshal, F.M. 2008. Heavy metal (Cu, Zn, Cd and Pb) contamination of vegetables in urban India: A case study in Varanasi. Environmental Pollution, 154(2): 254-263. [Abstract/FREE full text, PubMed, Google Scholar]

Singh, R.P. and Agrawal, M. 2009. Use of sewage sludge as fertilizer supplement for Abelmoschus esculentus plants: Physiological, biochemical and growth responses. International Journal of Environmental Waste Management, 3(1): 91-106. [Abstract/FREE full text, Google Scholar]

Singh, A., Sharma, R.K., Agrawal, M. and Marshall, F. 2010. Risk assessment of heavy metal toxicity through contaminated vegetables from waste water irrigated area of Varanasi, India. Tropical Ecology, 51(2S): 375-387. [Abstract/FREE full text, Google Scholar]

Steel, R.G.D., Torrie, H. and Dickey, D.A. 1997. Principles and Procedures of Statistics: A Biological Approach, 3rd Edition. McGraw Hill Book Co. Inc., New York, USA.

Sujatha, D., Mami, U., Durai, M.F., Saxena, P.N., Murthy, R.C. and Mandal, A.B. 2013. Contamination of soil and water by industrial effluents and metal accumulation in plant produce of Ranipet area of Tamilnadu, India. Journal of Applied Phytotechnology in Environmental Sanitation, 2(2): 65-71. [Abstract/FREE full text, Google Scholar]

Thapliyal, A., Vasudevan, P., Dastidar, M.G., Tandon, M. and Mishra, S. 2011. Irrigation with domestic waste water: Responses on growth and yield of ladyfinger (Abelmoschus esculentus) and on soil nutrients. Journal of Environmental Biology, 32(5): 645. [Abstract/FREE full text, PubMed, Google Scholar]

Topcuoğlu, B., Önal, M.K. and Arı, N. 2003. Effects of the soil applications of municipal sewage sludge on tomato plant: Plant nutrients and heavy metal contents. Akdeniz University Journal of Agricultural Faculty, 16(1): 87-96.

WHO. 1996. Guidelines for drinking water quality, health criteria and supporting information. 94/9960- Mastercom/ Wiener Verlag-800, Australia. [Abstract/FREE full text]

Yadav, A, Yadav, P.K. and Shukla, D.N. 2013. Investigation of heavy metal status in soil and vegetables grown in urban area of Allahabad, Uttar Pradesh, India. International Journal of Scientific and Research Publications, 3(9): 1-7. [Abstract/FREE full text, Google Scholar]

Yusuf, A.A., Arowolo, T.A. and Bamgbose, O. 2003. Cadmium, copper and nickel levels in vegetables from industrial and residential areas of Lagos City, Nigeria. Food and Chemical Toxicology, 41(3): 375-378. [Abstract/FREE full text, PubMed, Google Scholar]

Ullah, H., Khan, I. and Ullah, I. 2011. Impact of sewage contaminated water on soil, vegetables and underground water of peri-urban Peshawar, Pakistan. Environmental Monitoring and Assessment, 184(10): 6411-6421. [Abstract/FREE full text, PubMed, Google Scholar]

Zavadil, J. 2009. The effect of municipal waste water irrigation on the yield and quality of vegetables and crops. Soil and Water Research, 4(3): 91-103. [Abstract/FREE full text, Google Scholar]
