ABSTRACT
Horticultural crops irrigated with sewage wastewater have enhanced metal toxicity. Among heavy metals, vanadium most adversely affects vegetative growth, crop yield, and overall fruit quality of horticultural crops globally. The accumulation of vanadium metal disrupts different physiological processes of plants, influencing the overall performance, including growth, yield and quality aspects. Horticultural crops subjected to vanadium toxicity exhibit reduced photosynthesis, metabolic disturbances, and imbalanced nutrient assimilation. Metabolic processes are impaired due to oxidative harms under vanadium toxicity. However, the activation of enzymatic properties was also revealed under vanadium toxicity to cope with oxidative harm. So, different management practices can be used to lessen the adverse effects of vanadium toxicity. These management approaches include the utilization of phytohormones, bio-stimulants, soil microorganisms, biochar, and the selection of vanadium-tolerant cultivars. The application of these management strategies has the potential to lessen vanadium toxicity in horticultural crops. So, the present review explores applying different mitigation strategies to improve stress tolerance against vanadium toxicity in horticulture crops.
INTRODUCTION
Vanadium is the sixth most abundant transition metal on earth. It is widely found in the soils of China, Russia, the United States, and South Africa (Amorim et al.,2007; Gan et al., 2021). China is the largest producer and user of the metal globally (Tripathi et al., 2018). Many organic and inorganic processes, such as the ageing of rock sources, redox reactions, leaching, the use of fertilizers, burning, and industrial byproducts, are the main sources for the widespread distribution and mobilization of vanadium. Therefore, vanadium pollutes the water, soil, and environment (Tian et al.,2015). Vanadium is found in soil ranging from 3-310 mg kg-1. Vanadium content in fresh, ground, and drinking water ranges from 0.5 µg L−1 on a median, peaking at 127.4 µg L−1 in volcanic regions (Wu et al., 2021). Vanadium builds up in natural habitats, contaminating water as well as soil and eventually harming human health through nausea, vomiting, vertigo, and, more dangerously, kidney impairment (He et al., 2020). Several researchers have explored the negative effects of vanadium toxicity on plant growth and yield due to induced oxidative stress (Larsson et al., 2013; Wu et al., 2021). The oxidation phase of vanadium affects its accessibility, bioaccumulation, and cytotoxicity. The poisonous substance vanadate, which is derived from vanadium, inhibits the biological, biochemical, and morphological processes of plants in elevated amounts, ultimately impeding plant growth and yield (Garcia-Jimenez et al., 2018; Wu et al., 2021). Plants may readily absorb vanadium through the soil; nevertheless, the amount of vanadium in the soil affects the plants. Plant growth, transpiration, and gas exchange factors are improved by low levels of vanadium supplementation (Chen et al., 2016). An increase in the production of reactive oxygen species (ROS), cell membranes rupturing, antioxidant enzymes activation, metabolism disturbances, and transcription of genes are all consequences of excessive vanadium intervention on plant health (Sridhara Chary et al., 2008; Reiter et al., 2015). By producing more osmolytes and polyphenols and boosting the functioning of antioxidant enzymes, plants can withstand oxidative harm and neutralize ROS (Kumar et al., 2021). Previous research demonstrated the impact of vanadium on plant physiology by modifying or lowering the rate of photosynthetic respiration, root and shoot survival, and chlorosis in the leaves (Reiter et al., 2015; Kumar et al., 2021).
Photosynthesis is an essential metabolic mechanism in plants that boosts yields and absorption of carbon. Exposure to heavy metal can significantly impair both its generation and assimilation (Altaf et al., 2021). Under heavy metal stress, especially vanadium toxicity, several studies have shown an extensive decrease in photosynthesis and gas exchange components in pepper and watermelon (Nawaz et al., 2018). Blocking electron transport and weakening the chloroplast’s membrane resilience can harm photosynthetic pigments. Similarly, plant roots become the vital organ responsible for interacting with and absorbing soil metal (Leon-Morales et al., 2019). The primary defence against toxic heavy metals is a plant’s roots, which provide structural stability. Plant tolerance can be improved by reducing the absorption of superfluous metal (Aihemaiti et al., 2020). Previous research also showed that certain plants’ root structure was dramatically diminished at greater levels of vanadium treatment (Garcia-Jimenez et al., 2018). However, optimal concentrations of vanadium metal and their impacts on horticultural crops can be further explored for sustainable farming (Table 1).

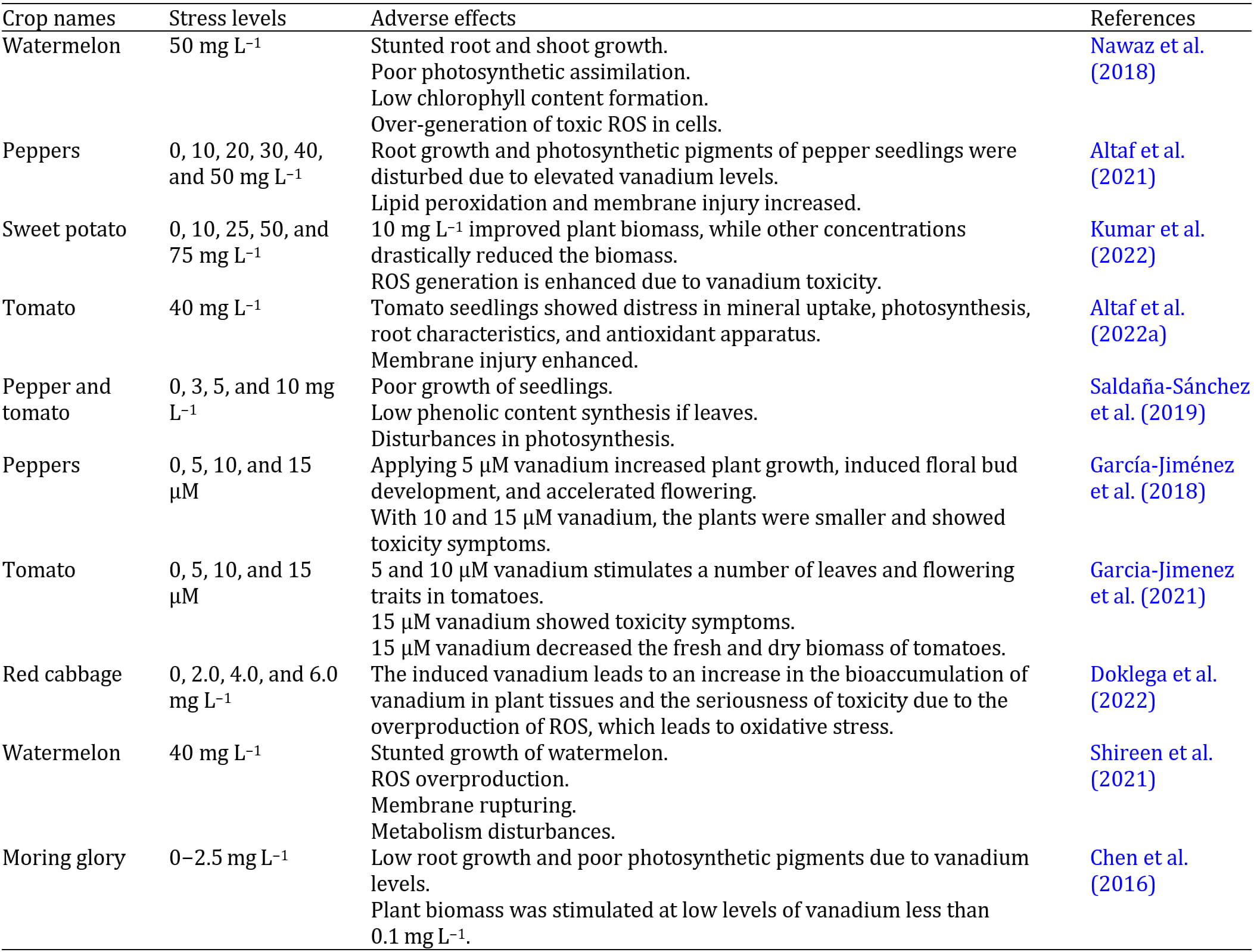

Table 1: The adverse effects of vanadium on growth, yield and quality of horticultural crops.
Sustainable cultivation of horticulture crops is economically important within the country. Vanadium toxicity is reported in several horticultural and field crops, such as peppers (Garcia-Jimenez et al., 2018), alfalfa (Gan et al., 2020), and rice (Yuan et al., 2020). Different management approaches such as bio-stimulant application, use of phytohormones and plant growth regulators, application of different minerals, utilization of biochar, soil microbes and uptake of minerals, and grafting approaches can mitigate the adverse effects of vanadium toxicity (Table 2). The present review encourages the beneficial role of bio-stimulant application, utilization of biochar, soil microbes, minerals assimilation, and grafting approaches that can effectively alleviate vanadium toxicity in horticulture crops.

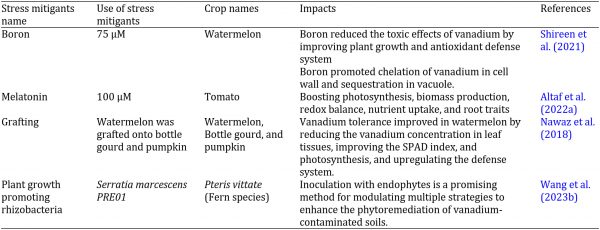

Table 2: The use of various stress mitigants and their potential effects on horticultural crops against vanadium toxicity.
EFFECTS OF VANADIUM STRESS ON PLANT GROWTH, YIELD AND QUALITY
Vegetative and reproductive growth
Excessive vanadium inhibits plant growth, alters physiological and biochemical activities, and enhances the production of ROS (Kumar et al.,2022). Numerous studies have reported that the toxicity of plants induced by vanadium includes reducing plant biomass, altering enzymatic activities, decreasing nutrient absorption, inhibiting chlorophyll and protein production, impairing cell wall formation, and even causing cell apoptosis (Aihemaiti et al., 2020; Roychoudhury, 2020). ROS overproduction in plants may enhance the negative effects of oxidative stress including chromosomal damage, metabolic disruption, increased cell membrane permeability, enzyme inhibition, and promotion of cell-damaging lipid peroxidation (Tripathi et al., 2018; Chen et al., 2021).
Vanadium toxicity has pronounced effects on the root architecture and morphology of plants, which can have significant implications for their overall growth and development (Tripathi et al., 2018). An exposure to the elevated levels of vanadium can disrupt root growth and alter the root architecture. Moreover, vanadium toxicity also results in a reduction of primary root length and lateral root development (Altaf et al., 2022a). The inhibition of root elongation and branching results in a decreased surface area for nutrient and water absorption, impairing the plant’s ability to uptake essential resources from the soil (Vachirapatama et al., 2011). Vanadium toxicity can also affect root morphology, changing things like root diameter and root hair development, as reported in Arabidopsis thaliana (Rojek et al., 2019). These modifications may also affect the effectiveness of nutrient uptake and interactions between roots and soil (Altaf et al., 2022b). It is crucial to comprehend the effects of vanadium toxicity on root architecture and morphology for adopting strategies to lessen the harmful impacts of vanadium toxicity on plant growth and increase the resilience of horticulture crops in vanadium-contaminated environments.
The elevated levels of vanadium can interfere with physiological and hormonal processes, delaying flowering and fruiting (Vachirapatama et al., 2011). Furthermore, vanadium-induced oxidative stress can also affect the development of reproductive structures, preventing flower bud formation and impairing pollen viability. This can reduce pollination and fertilization rates, resulting in a decrease in fruit yield (Altaf et al., 2021; Wu et al., 2022). Vanadium poisoning can also disrupt the manufacture and communication of plant hormones like auxins and gibberellins, which are essential for the growth of flowers and fruits (Altaf et al., 2022a).
Yield and produce quality
Vanadium toxicity has several negative impacts on fruit quality and yield and affects the growth and development of horticultural crops. Moreover, fruit size, weight, and yield may decrease because of high vanadium levels (Vachirapatama et al., 2011). The fruit’s biochemical quality may be adversely impacted by vanadium, changing its flavour, aroma, and nutritional value (Altaf et al., 2021). Important constituents, including sugars, organic acids, and antioxidants, may diminish as a result, lowering the quality of the produce, as reported in lettuce by Wu et al. (2022). Vanadium poisoning can disturb the plant’s hormonal balance, leading to early fruit drop. Furthermore, vanadium stress’s disruption of nutrient intake can lead to nutritional deficits, further reducing fruit quality and output (Doklega et al., 2022). Therefore, it is crucial to reduce vanadium toxicity in horticultural crops to maintain fruit quality, assure optimal fruit production, and satisfy consumer needs for fruit that is marketable, tasty, and nutritious. Vanadium-stressed plants may have irregular or delayed flower opening, delayed fruit development, and inferior fruit quality (Shireen et al., 2021). Understanding how vanadium toxicity affects fruiting and flowering is crucial for developing effective mitigation techniques that will lessen these effects and guarantee optimum reproductive health and crop output.
TOLERANCE MECHANISM IN RESPONSE TO VANADIUM TOXICITY
The alteration in hormonal levels, disruption in photosynthesis, accumulation of ROS, and poor nutrient uptake and assimilation are some consequences in horticulture crops because of vanadium toxicity (Gokul et al., 2018). These influences can greatly impact the growth, development, and general production of horticulture crops (Altaf et al., 2021). The impairment of photosynthesis, the vital mechanism through which plants transform light energy into chemical energy, is one of the main effects of vanadium toxicity (Buendía-Valverde et al., 2023). Metal toxicity can interfere with photosynthesis by modifying the amount of chlorophyll, suppressing enzyme activity, and changing photosystem work (Pardo-Hernández et al., 2021). Moreover, reduced photosynthetic rate, lower light absorption efficiency, and poorer carbon uptake result from the metals’ toxicity. Lower crop yields and reduced biomass output result from vanadium toxicity (Xie et al., 2022).
The buildup of ROS within plant cells is another effect of vanadium toxicity. Through redox processes, vanadium ions can produce ROS, including superoxide radicals, hydrogen peroxide, and hydroxyl radicals (Altaf et al., 2022b). Oxidative stress is induced by an overabundance of ROS, which overwhelms the plant’s antioxidant defence mechanism (Farooq et al., 2019). ROS buildup causes oxidative damage to lipids, proteins, and DNA, among other biological constituents (Racchi, 2013). Therefore, plant growth and development are hampered when cellular architecture and functions are disturbed. Vanadium toxicity can also interfere with the uptake and assimilation of nutrients used in horticultural crops. It can compete with other necessary nutrients for absorption and binding sites in the plant, like iron, calcium, and magnesium (Aihemaiti et al., 2020). So, numerous metabolic processes may be impaired by nutritional imbalances and inadequacies due to the competition. Vanadium can also hinder the movement and absorption of nutrients inside plants, impacting their overall nutrient status (Aihemaiti et al., 2020). The breakdown of nutritional homeostasis further jeopardises crop quality, nutrient uptake, and plant growth (Tripathi et al., 2018). Vanadium toxicity can also change the hormonal composition of horticultural crops. Hormones are essential for controlling several physiological processes, including growth, development, and stress reactions (Chen et al., 2021). Vanadium can interfere with the signalling, metabolism, and production of hormones. It can obstruct the transport and perception of plant hormones such as auxins, cytokinins, gibberellins, and abscisic acid as well as their synthesis (Chen et al., 2016). The cell division, elongation, flowering, fruiting, and other developmental processes may be impacted by these changes in hormone levels and signalling pathways in horticultural crops (Vachirapatama et al., 2011).
Developing mitigation measures requires a thorough understanding of the impact of vanadium toxicity on reduced photosynthesis, the buildup of ROS, disturbance of nutrient absorption and assimilation, and changed hormone levels (Nawaz et al., 2018). Implementing vanadium reduction options, such as soil remediation methods, can help mitigate the detrimental effects on crop development and yield (Gangwar et al., 2014; Khan et al., 2022). Applying exogenous chemicals such as antioxidants, Osmo protectants, and plant growth regulators may lessen the consequences of vanadium-induced stress by enhancing stress tolerance and reducing oxidative damage (Nawaz et al., 2018). It is also possible to investigate genetic methods like genetic engineering to create crop kinds that can withstand vanadium. Horticultural crops can be safeguarded from the negative impacts of vanadium toxicity by addressing these consequences and putting in place suitable mitigation techniques, assuring sustainable and effective agricultural practices (Hoque et al., 2021; Khan et al., 2022; Xie et al., 2022).
MANAGEMENT APPROACHES TO ALLEVIATE THE VANADIUM STRESS IN HORTICULTURAL CROPS
Biochar application for alleviation of vanadium stress
Globally, the rate of urbanization and industrialization has accelerated, leading to an upsurge in pollution caused by heavy metals (Lou et al., 2016). In addition to being a major health risk to people and animals, pollution from heavy metals exerts a detrimental impact on crop quality, production, as well as soil condition (Feng et al., 2023). Carbon rice, or biochar, is made through the oxygen-free pyrolysis of various raw materials (Lou et al., 2016). Because of its distinct physio-chemical properties, it has drawn a lot of attention from around the world as an eco-friendly, cutting-edge, and durable tool for agriculture, energy generation, and environmental protection (Velli et al., 2021). Biochar is a valuable addition for utilization in agriculture because of its high particular area, surface action, improved structure with pores, oxygen-rich functional groups, and increased ion exchange potential (Awad et al., 2022). In the last few years, biochar has gained popularity as a crucial instrument for controlling pollution in the environment and cleaning up polluted soils (Almaroai and Eissa, 2020). It also has the added advantages of enhancing fertility in soils, improving soil quality, and storing carbon (Sarma et al., 2019). Toxic metals decreased antioxidant activity, resulting, in turn, a notable decline in plant growth. So, by inactivating the hazardous metals, the use of biochar reduced their biological activity (Wang et al., 2023a). Another investigation found that applying biochar enhanced the proliferation of metal-tolerant, imparting gene and antioxidant genes, improving resistance to vanadium (Dai et al., 2018).
The two primary fundamental parts of biochar, which is a robust carbon molecule, are randomly organized amorphous aromatic molecules as well as paired crystalline graphene sheets. Biochar is produced via pyrolysis, a heat process that breaks down organic molecules (Ahmed et al., 2021). The amount of aromatic carbon in the biochar increases as the temperature rises throughout pyrolysis. Moreover, biochar also helps to retain water as well as nutrients, stops dangerous bacteria from growing, removes heavy metals as well as pesticides, stops soil loss, raises the soil pH, enhances cationic transaction, and promotes soil fertility (Sarma et al., 2019). Polluting substances in soils can be retained by biochar. To combat the harmful effects of ROS on crops, biochar dramatically alters the ROS cleaning enzymes and, therefore, offers an effective electron-transferring channel (Dai et al., 2018). Although rice husk biochar, as well as wood biochar that had fewer functional groups, showed higher surface regions and porosity, they were less successful in immobilizing vanadium and lowering its plant absorption (Shakya and Agarwal., 2020; Haider et al., 2022).
The wood biochar with rich O-containing structural sites was more successful in both processes. Furthermore, it was shown that several parameters primarily regulated the dissolution as well as transpiration of vanadium in soil enriched in biochar (Natasha et al., 2022). Improvements in soil acidity with soluble aromatic organic carbon potentially immobilize vanadium and reduce its toxicological risk, whereas rises in soil pH, as well as soluble hydrocarbon, may promote vanadium mobilization and phytoremediation (Subedi et al., 2017). So, by enhancing antioxidant activity and lowering ROS generation, applying biochar to mustard plants promotes growth and biomass output reported by a few other plant researchers (Subedi et al., 2017; Khan et al., 2022).
Potential effect of grafting against vanadium stress in vegetables
The process of grafting, which involves uniting scion and rootstock from the same or different plant species to form ats, grafting can reduce heavy metal stress in a variety new plant, is a significant horticultural technique (Goldschmidt, 2014). The practical use of this method has been widely tested against various kinds of stresses in horticultural crops (Nawaz et al., 2016; Drobek et al., 2019). By excluding or retaining/accumulating heavy metals in the roots, grafting can reduce heavy metal stress in a variety of crops (Güçlü et al., 2003). The vanadium concentration of 50 µM significantly inhibits the growth of watermelon. Watermelon’s resistance to vanadium damage and plant growth is enhanced by the incorporation of bottle gourd as well as pumpkin rootstock (Nawaz et al., 2018). Through grafting watermelon over the above rootstocks, the corresponding chlorophyll content, as well as photosynthetic integration, are improved (Ceylan et al., 2018). The vanadium level within the leaf tissue is decreased, antioxidant-related genomes are up-regulated, enzymatic activities are improved, and oxidative injury level is decreased, and protecting the leaves (Edelstein et al., 2017). While it has been documented that several heavy metals, including Cu, Cr, Ni, Cd, Sr, and Ti, can be better tolerated by using rootstocks, there is currently no additional information on the possibility of grafting to increase vegetable resistance to metals toxicity (Savvas et al., 2010). Research is needed to fully comprehend the discriminatory procedure of pumpkin rootstock in the distribution of vanadium and P, as P levels in the leaf tissue of self-grafted along with bottle gourd-grafted watermelon crops decreased in vanadium toxicity circumstances, but did not change in the context of pumpkin grafted watermelon (Nawaz et al., 2018).
Application of phytohormones against vanadium stress in plants
Vanadium poisoning of fertile soils has been a danger to world crop supplies in the last few years. Plants naturally produce substances called phytohormones, which are crucial for controlling the growth and maturation of plants (Nguyen et al., 2021). Plants can recognize metal toxicity and initiate a variety of signalling cascades. Plant hormones, which are either exogenous or natural, help to lessen the stress that vanadium causes in tomato seedlings (Altaf et al., 2022a). Moreover, determining the role of phytohormones in plants during vanadium toxicity has advanced significantly in the past decade. Horticultural plants’ ability to withstand metal toxicity can be improved by phytohormones (Popova et al., 2012). Vanadium is a hazardous heavy metal that can build up in plant tissues and result in some physicochemical alterations that impede growth and production (Kumar et al., 2022). It has been demonstrated that phytohormones are crucial for controlling plant growth and development as well as how plants react to different heavy metal stressors (Emamverdian et al., 2020; Sharma et al., 2020). A few investigations have shown that external phytohormone treatment can enhance plant development and lessen metals harmful effects on horticulture plants (Sharma et al., 2020; halil et al., 2021). Melatonin promotes root development and lessens vanadium buildup in plant tissues, while melatonin also increases antioxidant activity and lessens vanadium-induced oxidative damage (Nawaz et al., 2018). Therefore, increasing plant development and output in soil contaminated with vanadium may be possible with the application of phytohormones to increase plants’ resistance to vanadium distress. Melatonin is a well-researched biomolecule that functions as an antioxidant in stressful environments, one of the many drugs that relieve stress (Yang et al., 2023). According to earlier findings, vanadium (40 mg L-1) stress resulted in the reduction of productivity due to deficiencies in photosynthetic networks, root characteristics, and balance of minerals. On the other hand, melatonin (100 µM) treatment resulted in a significant reinforcement of plant growth parameters, including diminished vanadium buildup and enhanced mineral nutrient stability, gas exchange variables, root shape, and levels of chlorophyll (Altaf et al., 2022a). The use of melatonin increases plant growth, reduces the amount of vanadium available in the plant, and enhances a plant’s capacity to withstand vanadium distress (Moustafa-Farag et al., 2020).
The application of plant growth-promoting Rhizobacteria and bio-stimulants for enhanced vanadium resilience
An innovative method that serves two purposes is the utilization of plant growth-promoting rhizobacteria (PGPR) to increase productivity in crops under stress from heavy metals. One of the more hazardous possible inorganic pollutants that can contaminate soil, water, or air and make their way into the food system is a buildup of heavy metals (Singh et al., 2019). The issue is particularly bad in and around large, heavy-industry urban centres. Hence, plants have been shown to produce phytohormones as a coping mechanism for abiotic stressors. The potential for external use of phytohormones generated by microbes to boost plants’ ability to withstand stress (Nazli et al., 2020). The method has also been documented as a potentially useful strategy to help crop plants develop stress resistance in harsh conditions. These bacteria can enhance plant development in addition to creating them through a variety of indirect as well as direct approaches (Zhu et al., 2023). Therefore, bacteria can alter how plants produce endogenous hormones, which could alter how plant tissues metabolize their resources. These microorganisms may be employed to stop the harmful consequences of stress linked to heavy metals (Khan et al., 2009). One of the sustainable methods for growing crops in unstable conditions is the application of PGPR during stress from metals (Ali et al., 2011). To increase agricultural yield and enhance soil and ecosystem strength, approaches utilizing biological genetics, computational biology, and modelling techniques should be developed to enhance plant-microbe relations (Yildirim et al., 2022).
Vanadium is a crucial metal in industrial processes, but excessive concentrations of it can be harmful to humans, animals, and plants (Chen et al., 2016). A considerable vanadium level escapes throughout the soil environment because of its diverse deployment in factories (Doklega et al., 2022). A wide class of chemicals known as “bio-stimulants” increases the efficiency with which plants absorb nutrients, enhances qualitative characteristics, and may even help plants develop a stress response (Trejo‐Téllez et al., 2023). Plants that are bio-stimulated grow faster and are better able to withstand stress (Bartucca et al., 2022). Following numerous research, it has now been determined that these bio-stimulants play a part in lowering the toxicity of heavy metals by stimulating the antioxidant reflex (Fig. 1) (Gill et al., 2023; Sharaya et al., 2023).
Figure 1: Different stress mitigants with potential against adverse effects of vanadium stress in plants.
CONCLUSION AND FUTURE IMPLICATIONS
Horticultural crops are highly threatened by vanadium-induced stress, which has negative effects on their growth, yield, and quality. There are several ways to reduce the oxidative stress and disruption of physiological processes occurring from vanadium toxicity. The potential approaches for suppressing vanadium toxicity in horticulture crops include the use of bio-stimulants, biochar, phytohormones, soil microbes, and plant growth regulators. The researchers and growers can work towards sustainable horticulture practices that lessen the negative impacts of vanadium-induced stress by putting these mitigation methods into practice.
Declaration of competing interests
The authors declare that they have no known competing financial interests or personal relationships that seem to affect the work reported in this article. We declare that we have no human participants, human data, or human tissues.
Author contribution statement
Riaz Ahmad: conceptualization, Data curation, Reviewing and editing. Muhammad Usama Sabir: Writing, Visualization, Validation.
Acknowledgments
Authors are Thankful to the Department of Horticulture, The University of Agriculture, Dea Ismail Khan, Pakistan.
REFERENCES
Ahmed, N., Shah, A.R., Danish, S., Fahad, S., Ali, M.A., Zarei, T., Vranová, V. and Datta, R. 2021. Immobilization of Cd in soil by biochar and new emerging chemically produced carbon. Journal of King Saud University-Science, 33(5): 101472. [Abstract/FREE full text, Google Scholar, CrossRef]
Aihemaiti, A., Gao, Y., Meng, Y., Chen, X., Liu, J., Xiang, H., Xu, Y. and Jiang, J. 2020. Review of plant-vanadium physiological interactions, bioaccumulation, and bioremediation of vanadium-contaminated sites. Science of the Total Environment, 712: 135637. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Ali, Q., Ahsan, M., Khaliq, I., Elahi, M., Ali, S., Ali, F. and Naees, M. 2011. Role of rhizobacteria in phytoremediation of heavy metals: an overview. Int Res J Plant Sci, 2: 220-232. [Google Scholar]
Almaroai, Y.A. and Eissa, M.A. 2020. Effect of biochar on yield and quality of tomato grown on a metal-contaminated soil. Scientia Horticulturae, 265: 109210. [Abstract/FREE full text,Google Scholar, CrossRef]
Altaf, M.A., Shahid, R., Ren, M.X., Khan, L.U., Altaf, M.M., Jahan, M.S., Nawaz, M.A., Naz, S., Shahid, S., Lal, M.K. and Tiwari, R.K. 2021. Protective mechanisms of melatonin against vanadium phytotoxicity in tomato seedlings: insights into nutritional status, photosynthesis, root architecture system, and antioxidant machinery. Journal of Plant Growth Regulation, 41: 3300-3316. [Abstract/FREE full text, Google Scholar, CrossRef]
Altaf, M.A., Shu, H., Hao, Y., Zhou, Y., Mumtaz, M.A. and Wang, Z., 2022a. Vanadium toxicity induced changes in growth, antioxidant profiling, and vanadium uptake in pepper (Capsicum annum L.) seedlings. Horticulturae, 8(1): 28. [Abstract/FREE full text, Google Scholar, CrossRef]
Altaf, M.M., Diao, X.P., Shakoor, A., Imtiaz, M., Altaf, M.A. and Khan, L.U. 2022b. Delineating vanadium (V) ecological distribution, its toxicant potential, and effective remediation strategies from contaminated soils. Journal of Soil Science and Plant Nutrition, 22: 121–139. [Abstract/FREE full text, Google Scholar, CrossRef]
Amorim, F.A., Welz, B., Costa, A.C., Lepri, F.G., Vale, M.G.R. and Ferreira, S.L., 2007. Determination of vanadium in petroleum and petroleum products using atomic spectrometric techniques. Talanta, 72: 349-359. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Awad, M., Moustafa-Farag, M., Liu, Z. and El-Shazoly, R.M. 2022. Combined effect of biochar and salicylic acid in alleviating heavy metal stress, antioxidant enhancement, and Chinese mustard growth in a contaminated soil. Journal of Soil Science and Plant Nutrition, 22: 4194-4206. [Abstract/FREE full text, Google Scholar, CrossRef]
Bartucca, M.L., Cerri, M., Del Buono, D. and Forni, C. 2022. Use of biostimulants as a new approach for the improvement of phytoremediation performance — A review. Plants, 11: 1946. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Buendía-Valverde, M.D.L.L., Gómez-Merino, F.C., Corona-Torres, T., Mateos-Nava, R.A. and Trejo-Téllez, L.I. 2023. Effects of cadmium, thallium, and vanadium on photosynthetic parameters of three chili pepper (Capsicum annuum L.) varieties. Plants, 12: 3563. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Ceylan, Ş., Özlem, A. and Elmaci, Ö.L. 2018. Effects of grafting on nutrient element content and yield in watermelon. Ege Üniversitesi Ziraat Fakültesi Dergisi, 55(1): 67-74. [Abstract/FREE full text, Google Scholar, CrossRef]
Chen, L., Liu, J.R., Hu, W.F., Gao, J. and Yang, J.Y. 2021. Vanadium in soil-plant system: Source, fate, toxicity, and bioremediation. Journal of Hazardous Materials, 405: 124200. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Chen, T., Li, T.Q. and Yang, J.Y., 2016. Damage suffered by swamp morning glory (Ipomoea aquatica Forsk) exposed to vanadium (V). Environmental Toxicology and Chemistry, 35(3): 695–701. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Dai, S., Li, H., Yang, Z., Dai, M., Dong, X., Ge, X., Sun, M. and Shi, L. 2018. Effects of biochar amendments on speciation and bioavailability of heavy metals in coal-mine-contaminated soil. Human and Ecological Risk Assessment: An International Journal, 1887-1900. [Abstract/FREE full text, Google Scholar, CrossRef]
Doklega, S.M., El-Ezz, S.F.A., Mostafa, N.A., Dessoky, E.S., Abdulmajeed, A.M., Darwish, D.B.E., Alzuaibr, F.M., El-Yazied, A.A., El-Mogy, M.M., Mahmoud, S.F. and M. Taha, N. 2022. Effect of titanium and vanadium on antioxidants content and productivity of red cabbage. Horticulturae, 8(6): 481. [Abstract/FREE full text, Google Scholar, CrossRef]
Drobek, M., Frąc, M. and Cybulska, J. 2019. Plant biostimulants: Importance of the quality and yield of horticultural crops and the improvement of plant tolerance to abiotic stress—Aareview. Agronomy, 9(6): 335. [Abstract/FREE full text, Google Scholar, CrossRef]
Edelstein, M., Cohen, R., Baumkoler, F. and Ben-Hur, M. 2017. Using grafted vegetables to increase tolerance to salt and toxic elements. Israel Journal of Plant Sciences, 64: 3-20. [Abstract/FREE full text, Google Scholar, CrossRef]
Emamverdian, A., Ding, Y. and Mokhberdoran, F. 2020. The role of salicylic acid and gibberellin signaling in plant responses to abiotic stress with an emphasis on heavy metals. Plant Signaling & Behavior, 15(7): 1777372. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Farooq, M.A., Niazi, A.K., Akhtar, J., Farooq, M., Souri, Z., Karimi, N. and Rengel, Z. 2019. Acquiring control: The evolution of ROS-Induced oxidative stress and redox signaling pathways in plant stress responses. Plant Physiology and Biochemistry, 141: 353-369. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Feng, D., Wang, R., Sun, X., Liu, P., Tang, J., Zhang, C. and Liu, H. 2023. Heavy metal stress in plants: Ways to alleviate with exogenous substances. Science of The Total Environment, 897: 165397. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Gan, C.D., Chen, T. and Yang, J.Y. 2020. Remediation of vanadium-contaminated soil by alfalfa (Medicago sativa L.) combined with vanadium-resistant bacterial strain. Environmental Technology & Innovation, 20: 101090. [Abstract/FREE full text, Google Scholar, CrossRef]
Gan, C.D., Chen, T. and Yang, J.Y. 2021. Growth responses and accumulation of vanadium in alfalfa, milkvetch root, and swamp morning glory and their potential in phytoremediation. Bulletin of Environmental Contamination and Toxicology, 107: 559–564. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Gangwar, S., Singh, V.P., Tripathi, D.K., Chauhan, D.K., Prasad, S.M. and Maurya, J.N. 2014. Plant responses to metal stress: the emerging role of plant growth hormones in toxicity alleviation. In Emerging technologies and management of crop stress tolerance,pp. 215-248 Academic Press. [Abstract/FREE full text, Google Scholar, CrossRef]
García-Jiménez, A., Trejo-Téllez, L.I., Guillén-Sánchez, D. and Gómez-Merino, F.C. 2018. Vanadium stimulates pepper plant growth and flowering, increases concentrations of amino acids, sugars and chlorophylls, and modifies nutrient concentrations. Plos one 13(8): e0201908. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Garcia-Jimenez, A., Trejo-TéLlez, L.I., SáNchez, M.G., Contreras-Oliva, A. and Gomez-Merino, F.C. 2021. Vanadium stimulates growth and flower production in tomato without affecting seed germination. Notulae Botanicae Horti Agrobotanici Cluj-Napoca, 49(4): 12400-12400. [Abstract/FREE full text,Google Scholar, CrossRef]
Gill, R., Nehra, A., Agarwala, N., Khan, N.A., Tuteja, N. and Gill, S.S. 2023. Biostimulants in the alleviation of metal toxicity: conclusion and future perspective. In Biostimulants in Alleviation of Metal Toxicity in Plants, pp. 551-551. Academic Press. [Abstract/FREE full text, Google Scholar, CrossRef]
Gokul, A., Cyster, L.F. and Keyster, M. 2018. Efficient superoxide scavenging and metal immobilization in roots determines the level of tolerance to vanadium stress in two contrasting Brassica napus genotypes. South African Journal of Botany, 119: 17-27. [Abstract/FREE full text, Google Scholar, CrossRef]
Goldschmidt, E.E. 2014. Plant grafting: new mechanisms, evolutionary implications. Frontiers in Plant Sciences, 5: 727. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Güçlü, G., Gürdağ, G. and Özgümüş, S. 2003. Competitive removal of heavy metal ions by cellulose graft copolymers. Journal of Applied Polymer Science, 90(8): 2034-2039. [Abstract/FREE full text, Google Scholar, CrossRef]
Haider, F.U., Wang, X., Farooq, M., Hussain, S., Cheema, S.A., Ul Ain, N., Virk, A.L., Ejaz, M., Janyshova, U. and Liqun, C. 2022. Biochar application for the remediation of trace metals in contaminated soils: Implications for stress tolerance and crop production. Ecotoxicology and Environmental Safety, 230: 113165. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
He, W.Y., Liao, W., Yang, J.Y., Jeyakumar, P. and Anderson, C. 2020. Removal of vanadium from aquatic environment using phosphoric acid modified rice straw. Bioremediation Journal, 24(1): 80–89. [Abstract/FREE full text, Google Scholar, CrossRef]
Hoque, M.N., Tahjib-Ul-Arif, M., Hannan, A., Sultana, N., Akhter, S., Hasanuzzaman, M., Akter, F., Hossain, M.S., Sayed, M.A., Hasan, M.T. and Skalicky, M. 2021. Melatonin modulates plant tolerance to heavy metal stress: morphological responses to molecular mechanisms. International Journal of Molecular Sciences, 22: 11445. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Khalil, R., Haroun, S., Bassyoini, F., Nagah, A. and Yusuf, M. 2021. Salicylic acid in combination with kinetin or calcium ameliorates heavy metal stress in Phaseolus vulgaris plant. Journal of Agriculture and Food Research, 5: 100182. [Abstract/FREE full text, Google Scholar, CrossRef]
Khan, M.S., Zaidi, A., Wani, P.A. and Oves, M. 2009. Role of plant growth promoting rhizobacteria in the remediation of metal contaminated soils. Environmental Chemistry Letters, 7: 1-19. [Abstract/FREE full text, Google Scholar, CrossRef]
Khan, Z., Fan, X., Khan, M.N., Khan, M.A., Zhang, K., Fu, Y. and Shen, H. 2022. The toxicity of heavy metals and plant signaling facilitated by biochar application: Implications for stress mitigation and crop production. Chemosphere, 308(3): 136466. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Kumar, S., Li, G., Huang, X., Ji, Q., Zhou, K., Hou, H., Ke, W. and Yang, J. 2021. Phenotypic, nutritional, and antioxidant characterization of blanched Oenanthe javanica for preferable cultivar. Frontiers in Plant Science, 12: 639639. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Kumar, S., Wang, M., Liu, Y., Zhu, Z., Fahad, S., Qayyum, A. and Zhu, G. 2022. Vanadium stress alters sweet potato (Ipomoea batatas L.) growth, ROS accumulation, antioxidant defense system, stomatal traits, and vanadium uptake. Antioxidants, 11(12): 2407. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Larsson, M.A., Baken, S., Gustafsson, J.P., Hadialhejazi, G. and Smolders, E. 2013. Vanadium bioavailability and toxicity to soil microorganisms and plants. Environmental Toxicology and Chemistry, 32(10): 2266–2273. [Abstract/FREE full text, Google Scholar, CrossRef]
León-Morales, J.M., Panamá-Raymundo, W., Langarica-Velázquez, E.C. and García-Morales, S. 2019. Selenium and vanadium on seed germination and seedling growth in pepper (Capsicum annuum L.) and radish (Raphanus sativus L.). Revista Bio Ciencias, 6: e425. [Abstract/FREE full text, Google Scholar, CrossRef]
Lou, Y., Joseph, S., Li, L., Graber, E.R., Liu, X. and Pan, G. 2016. Water extract from straw biochar used for plant growth promotion: an initial test. BioResources, 11(1): 249-266. [Google Scholar, CrossRef]
Moustafa-Farag, M., Elkelish, A., Dafea, M., Khan, M., Arnao, M.B., Abdelhamid, M.T., El-Ezz, A.A., Almoneafy, A., Mahmoud, A., Awad, M. and Li, L. 2020. Role of melatonin in plant tolerance to soil stressors: salinity, pH and heavy metals. Molecules, 25(22): 5359. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Natasha, N., Shahid, M., Khalid, S., Bibi, I., Naeem, M.A., Niazi, N.K., Tack, F.M., Ippolito, J.A. and Rinklebe, J. 2022. Influence of biochar on trace element uptake, toxicity and detoxification in plants and associated health risks: a critical review. Critical Reviews in Environmental Science and Technology, 52(16): 2803-2843. [Abstract/FREE full text, Google Scholar, CrossRef]
Nawaz, M.A., Imtiaz, M., Kong, Q., Cheng, F., Ahmed, W., Huang, Y. and Bie, Z. 2016. Grafting: a technique to modify ion accumulation in horticultural crops. Frontiers in Plant Science, 7: 1457. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Nawaz, M.A., Jiao, Y., Chen, C., Shireen, F., Zheng, Z., Imtiaz, M., Bie, Z. and Huang, Y. 2018. Melatonin pretreatment improves vanadium stress tolerance of watermelon seedlings by reducing vanadium concentration in the leaves and regulating melatonin biosynthesis and antioxidant-related gene expression. Journal of Plant Physiology, 220: 115-127. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Nazli, F., Mustafa, A., Ahmad, M., Hussain, A., Jamil, M., Wang, X., Shakeel, Q., Imtiaz, M. and El-Esawi, M.A. 2020. A review on practical application and potentials of phytohormone-producing plant growth-promoting rhizobacteria for inducing heavy metal tolerance in crops. Sustainability, 12(21): 9056. [Abstract/FREE full text, Google Scholar, CrossRef]
Nguyen, T.Q., Sesin, V., Kisiala, A. and Emery, R.N. 2021. Phytohormonal roles in plant responses to heavy metal stress: Implications for using macrophytes in phytoremediation of aquatic ecosystems. Environmental Toxicology and Chemistry, 40(1): 7-22. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Pardo-Hernández, M., López-Delacalle, M., Martí-Guillen, J.M., Martínez-Lorente, S.E. and Rivero, R.M. 2021. ROS and NO phytomelatonin-induced signaling mechanisms under metal toxicity in plants: A review. Antioxidants, 10(5): 775. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Popova, L.P., Maslenkova, L.T., Ivanova, A. and Stoinova, Z. 2012. Role of salicylic acid in alleviating heavy metal stress. Environmental Adaptations and Stress Tolerance of Plants In The Era of Climate Change. pp.447-466. [Abstract/FREE full text,Google Scholar, CrossRef]
Racchi, M.L. 2013. Antioxidant defenses in plants with attention to Prunus and Citrus spp. Antioxidants, 2(4): 340-369. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Reiter, R.J., Tan, D.X., Zhou, Z., Cruz, M.H.C., Fuentes-Broto, L. and Galano, A. 2015. Phytomelatonin: assisting plants to survive and thrive. Molecules, 20(4): 7396–7437. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Rojek, J., Kozieradzka-Kiszkurno, M., Kapusta, M., Aksmann, A., Jacewicz, D., Drzeżdżon, J., Tesmar, A., Żamojć, K., Wyrzykowski, D. and Chmurzyński, L. 2019. The effect of vanadium (IV) complexes on development of Arabidopsis thaliana subjected to H2O2-induced stress. Functional Plant Biology, 46(10): 942-961. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Roychoudhury, A. 2020. Vanadium uptake and toxicity in plants. Science Forest Journal of Agricultural and Crop Management, 1: 1010. [Google Scholar]
Saldaña-Sánchez, W.D., León-Morales, J.M., López-Bibiano, Y., Hernández-Hernández, M., Langarica-Velázquez, E.C. and García-Morales, S. 2019. Effect of V, Se, and Ce on growth, photosynthetic pigments, and total phenol content of tomato and pepper seedlings. Journal of Soil Science and Plant Nutrition, 19: 678-688. [Abstract/FREE full text, Google Scholar, CrossRef]
Sarma, H., Sonowal, S. and Prasad, M.N.V. 2019. Plant-microbiome assisted and biochar-amended remediation of heavy metals and polyaromatic compounds-a microcosmic study. Ecotoxicology and Environmental Safety, 176: 288-299. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Savvas, D., Colla, G., Rouphael, Y. and Schwarz, D. 2010. Amelioration of heavy metal and nutrient stress in fruit vegetables by grafting. Scientia Horticulturae, 127(2): 156-161. [Abstract/FREE full text, Google Scholar, CrossRef]
Shakya, A. and Agarwal, T. 2020. Potential of biochar for the remediation of heavy metal contaminated soil. Biochar Applications in Agriculture and Environment Management pp. 77-98. [Abstract/FREE full text, Google Scholar, CrossRef]
Sharaya, R., Nehra, A., Agarwala, N., Khan, N.A., Tuteja, N., Gill, R., and Gill, S.S. 2023. Biostimulants in the alleviation of metal toxicity: an overview. Biostimulants in Alleviation of Metal Toxicity in Plants. pp. 1-19. [Abstract/FREE full text, Google Scholar, CrossRef]
Sharma, A., Sidhu, G.P.S., Araniti, F., Bali, A.S., Shahzad, B., Tripathi, D.K., Brestic, M., Skalicky, M. and Landi, M. 2020. The role of salicylic acid in plants exposed to heavy metals. Molecules, 25(3): 540. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Shireen, F., Nawaz, M.A., Lu, J., Xiong, M., Kaleem, M., Huang, Y. and Bie, Z. 2021. Application of boron reduces vanadium toxicity by altering the subcellular distribution of vanadium, enhancing boron uptake and enhancing the antioxidant defense system of watermelon. Ecotoxicology and Environmental Safety, 226: 112828. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Singh, S., Kumar, V., Sidhu, G.K., Datta, S., Dhanjal, D.S., Koul, B., Janeja, H.S. and Singh, J. 2019. Plant growth promoting rhizobacteria from heavy metal contaminated soil promote growth attributes of Pisum sativum L. Biocatalysis and Agricultural Biotechnology, 17: 665-671. [Abstract/FREE full text, Google Scholar, CrossRef]
Sridhara Chary, N., Kamala, C.T. and Raj, D.S.S. 2008. Assessing risk of heavy metals from consuming food grown on sewage irrigated soils and food chain transfer. Ecotoxicology and Environmental Safety, 69(3): 513–524. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Subedi, R., Bertora, C., Zavattaro, L. and Grignani, C. 2017. Crop response to soils amended with biochar: expected benefits and unintended risks. Italian Journal of Agronomy, 12(2):161-173. [Abstract/FREE full text, Google Scholar, CrossRef]
Tian, L.Y., Yang, J.Y. and Huang, J.H. 2015. Uptake and speciation of vanadium in the rhizosphere soils of rape (Brassica juncea L.). Environmental Science and Pollution Research, 22: 9215–9223. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Trejo‐Téllez, L.I., Gómez‐Trejo, L.F. and Gómez‐Merino, F.C. 2023. Biostimulant effects and concentration patterns of beneficial elements in plants. Beneficial Chemical Elements of Plants: Recent Developments and Future Prospects. pp. 58-102. [Abstract/FREE full text, Google Scholar, CrossRef]
Tripathi, D., Mani, V. and Pal, R.P. 2018. Vanadium in biosphere and its role in biological processes. Biological Trace Element Research, 186(1): 52-67. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Vachirapatama, N., Jirakiattikul, Y., Dicinoski, G., Townsend, A.T. and Haddad, R. 2011. Effect of vanadium on plant growth and its accumulation in plant tissues. Sonklanakarin Journal of Science and Technology, 33(3): 255. [Abstract/FREE full text, Google Scholar]
Velli, P., Manolikaki, I. and Diamadopoulos, E. 2021. Effect of biochar produced from sewage sludge on tomato (Solanum lycopersicum L.) growth, soil chemical properties and heavy metal concentrations. Journal of Environmental Management, 297: 113325. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Wang, H., Chen, S., Liu, H., Li, J., Zaman, U.Q., Sultan, K., Rehman, M., Jeridi, M., Siddiqui, S., Fahad, S. and Deng, G. 2023a. Maize straw biochar can alleviate heavy metals stress in potato by improving soil health. South African Journal of Botany, 162: 391-401. [Abstract/FREE full text, Google Scholar, CrossRef]
Wang, L., Liao, X., Dong, Y. and Lin, H. 2023b. Vanadium-resistant endophytes modulate multiple strategies to facilitate vanadium detoxification and phytoremediation in Pteris vittata. Journal of Hazardous Materials, 443: 130388. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Wu, Z., Zhang, Y., Yang, J., Zhou, Y. and Wang, C. 2021. Effect of vanadium on testa, seed germination, and subsequent seedling growth of alfalfa (Medicago sativa L.). Journal Plant Growth Regulation, 40: 1566-1578. [Abstract/FREE full text, Google Scholar, CrossRef]
Wu, Z.Z., Zhang, Y.X., Yang, J.Y. and Jia, Z.Q. 2022. Effect of vanadium on Lactuca sativa L. growth and associated health risk for human due to consumption of the vegetable. Environmental Science and Pollution Research, 29: 1-14. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Xie, Q., Zhang, Y., Cheng, Y., Tian, Y., Luo, J., Hu, Z. and Chen, G. 2022. The role of melatonin in tomato stress response, growth and development. Plant Cell Reports, 41: 1631-1650. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Yang, H., Fang, R., Luo, L., Yang, W., Huang, Q., Yang, C., Hui, W., Gong, W. and Wang, J. 2023. Potential roles of melatonin in mitigating the heavy metals toxicity in horticultural plants. Scientia Horticulturae, 321: 112269. [Abstract/FREE full text, Google Scholar, CrossRef]
Yildirim, E., Ekinci, M. and Turan, M. 2022. Mitigation of heavy metal toxicity by plant growth–promoting rhizobacteria. Sustainable Horticulture, 1: 97-123. [Abstract/FREE full text, Google Scholar, CrossRef]
Yuan, Y., Imtiaz, M., Rizwan, M., Dong, X., Tu, S. 2020. Effect of vanadium on germination, growth and activities of amylase and antioxidant enzymes in genotypes of rice. International Journal of Environmental Science and Technology, 17: 383–394. [Abstract/FREE full text, Google Scholar, CrossRef]
Zhu, Y., Wang, Y., He, X., Li, B. and Du, S. 2023. Plant growth-promoting rhizobacteria: A good companion for heavy metal phytoremediation. Chemosphere, 338: 139475. [Abstract/FREE full text, PubMed, Google Scholar, CrossRef]
Cultivation of tolerant germplasm, low-quality produce, metabolism disruption, toxic substances.
